Gitlab部署简介

  • Gitlab官方提供了 Helm 的方式在 Kubernetes 集群中来快速安装,但是在使用的过程中发现 Helm 提供的 Chart 包中有很多其他额外的配置,所以这里使用自定义的方式来安装,也就是自己来定义一些资源清单文件
  • Gitlab主要涉及到3个应用:Redis、Postgresql、Gitlab 核心程序,实际上我们只要将这3个应用分别启动起来,然后加上对应的配置就可以很方便的安装 Gitlab 了,我们这里选择使用的镜像不是官方的,而是 Gitlab 容器化中使用非常多的一个第三方镜像:sameersbn/gitlab,基本上和官方保持同步更新,地址:http://www.damagehead.com/docker-gitlab/
    如果已经有可使用的 Redis 或 Postgresql 服务的话,那么直接配置在 Gitlab 环境变量中即可,如果没有的话就单独部署

部署 Redis

gitlab-redis.yaml

[root@k8s01 gitlab]# vim gitlab-redis.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: redis
  namespace: kube-ops
  labels:
    name: redis
spec:
  selector:
    matchLabels:
      name: redis
  template:
    metadata:
      name: redis
      labels:
        name: redis
    spec:
      containers:
      - name: redis
        image: sameersbn/redis:4.0.9-2
        imagePullPolicy: IfNotPresent
        ports:
        - name: redis
          containerPort: 6379
        volumeMounts:
        - mountPath: /var/lib/redis
          name: data
        livenessProbe:
          exec:
            command:
            - redis-cli
            - ping
          initialDelaySeconds: 30
          timeoutSeconds: 5
        readinessProbe:
          exec:
            command:
            - redis-cli
            - ping
          initialDelaySeconds: 30
          timeoutSeconds: 1
      volumes:
      - name: data
        emptyDir: {}
---
apiVersion: v1
kind: Service
metadata:
  name: redis
  namespace: kube-ops
  labels:
    name: redis
spec:
  ports:
    - name: redis
      port: 6379
      targetPort: redis
  selector:
    name: redis

部署Postgresql

gitlab-postgresql.yaml

[root@k8s01 gitlab]# cat gitlab-postgresql.yaml
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgresql-data
  namespace: kube-ops
spec:
  storageClassName: managed-nfs-storage
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 20Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgresql
  namespace: kube-ops
  labels:
    name: postgresql
spec:
  selector:
    matchLabels:
      name: postgresql
  template:
    metadata:
      name: postgresql
      labels:
        name: postgresql
    spec:
      containers:
      - name: postgresql
        image: sameersbn/postgresql:10-2
        imagePullPolicy: IfNotPresent
        env:
        - name: DB_USER
          value: gitlab
        - name: DB_PASS
          value: passw0rd
        - name: DB_NAME
          value: gitlab_production
        - name: DB_EXTENSION
          value: pg_trgm
        - name: USERMAP_UID
          value: "999"
        - name: USERMAP_GID
          value: "999"
        ports:
        - name: postgres
          containerPort: 5432
        volumeMounts:
        - mountPath: /var/lib/postgresql
          name: data
        readinessProbe:
          exec:
            command:
            - pg_isready
            - -h
            - localhost
            - -U
            - postgres
          initialDelaySeconds: 30
          timeoutSeconds: 1
      volumes:
      - name: data
        persistentVolumeClaim:
          claimName: postgresql-data
---
apiVersion: v1
kind: Service
metadata:
  name: postgresql
  namespace: kube-ops
  labels:
    name: postgresql
spec:
  ports:
    - name: postgres
      port: 5432
      targetPort: postgres
  selector:
    name: postgresql

部署Gitlab

gitlab.yaml

[root@k8s01 gitlab]# cat gitlab.yaml
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: gitlab-data
  namespace: kube-ops
spec:
  storageClassName: managed-nfs-storage
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
---
apiVersion: apps/v1beta1
kind: Deployment
metadata:
  name: gitlab
  namespace: kube-ops
  labels:
    name: gitlab
spec:
  template:
    metadata:
      name: gitlab
      labels:
        name: gitlab
    spec:
      containers:
      - name: gitlab
        image: sameersbn/gitlab:11.8.1
        imagePullPolicy: IfNotPresent
        env:
        - name: TZ
          value: Asia/Shanghai
        - name: GITLAB_TIMEZONE
          value: Beijing
        - name: GITLAB_SECRETS_DB_KEY_BASE
          value: long-and-random-alpha-numeric-string
        - name: GITLAB_SECRETS_SECRET_KEY_BASE
          value: long-and-random-alpha-numeric-string
        - name: GITLAB_SECRETS_OTP_KEY_BASE
          value: long-and-random-alpha-numeric-string
        - name: GITLAB_ROOT_PASSWORD
          value: "123456"
        - name: GITLAB_ROOT_EMAIL
          value: op-info.axhome.com.cn
        - name: GITLAB_HOST
          value: gitlab.k8s.com
        - name: GITLAB_PORT
          value: "80"
        - name: GITLAB_SSH_PORT
          value: "22"
        - name: GITLAB_NOTIFY_ON_BROKEN_BUILDS
          value: "true"
        - name: GITLAB_NOTIFY_PUSHER
          value: "false"
        - name: GITLAB_BACKUP_SCHEDULE
          value: daily
        - name: GITLAB_BACKUP_TIME
          value: 01:00
        - name: DB_TYPE
          value: postgres
        - name: DB_HOST
          value: postgresql
        - name: DB_PORT
          value: "5432"
        - name: DB_USER
          value: gitlab
        - name: DB_PASS
          value: passw0rd
        - name: DB_NAME
          value: gitlab_production
        - name: REDIS_HOST
          value: redis
        - name: REDIS_PORT
          value: "6379"
        ports:
        - name: http
          containerPort: 80
        - name: ssh
          containerPort: 22
        volumeMounts:
        - mountPath: /home/git/data
          name: data
        livenessProbe:
          httpGet:
            path: /
            port: 80
          initialDelaySeconds: 180
          timeoutSeconds: 5
        readinessProbe:
          httpGet:
            path: /
            port: 80
          initialDelaySeconds: 5
          timeoutSeconds: 1
      volumes:
      - name: data
        persistentVolumeClaim:
          claimName: gitlab-data
---
apiVersion: v1
kind: Service
metadata:
  name: gitlab
  namespace: kube-ops
  labels:
    name: gitlab
spec:
  ports:
    - name: http
      port: 80
      targetPort: http
    - name: ssh
      port: 22
      targetPort: ssh
  selector:
    name: gitlab

---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: gitlab
  namespace: kube-ops
  annotations:
    kubernetes.io/ingress.class: traefik
spec:
  rules:
  - host: gitlab.k8s.com
    http:
      paths:
      - backend:
          serviceName: gitlab
          servicePort: 80

要注意的是其中 Redis 和 Postgresql 相关的环境变量配置,另外这里添加了一个 Ingress 对象,来为我们的 Gitlab 配置一个域名gitlab.k8s.com,这样应用部署完成后,我们就可以通过该域名来访问了,然后直接部署即可

[root@k8s01 gitlab]# kubectl apply -f gitlab-redis.yaml gitlab-postgresql.yaml gitlab.yaml
[root@k8s01 gitlab]# kubectl get pods -n kube-ops
NAME                                           READY     STATUS    RESTARTS   AGE
gitlab-7d855554cb-twh7c                        1/1       Running   0          10m
postgresql-8566bb959c-2tnvr                    1/1       Running   0          17h
redis-8446f57bdf-4v62p                         1/1       Running   0          17h

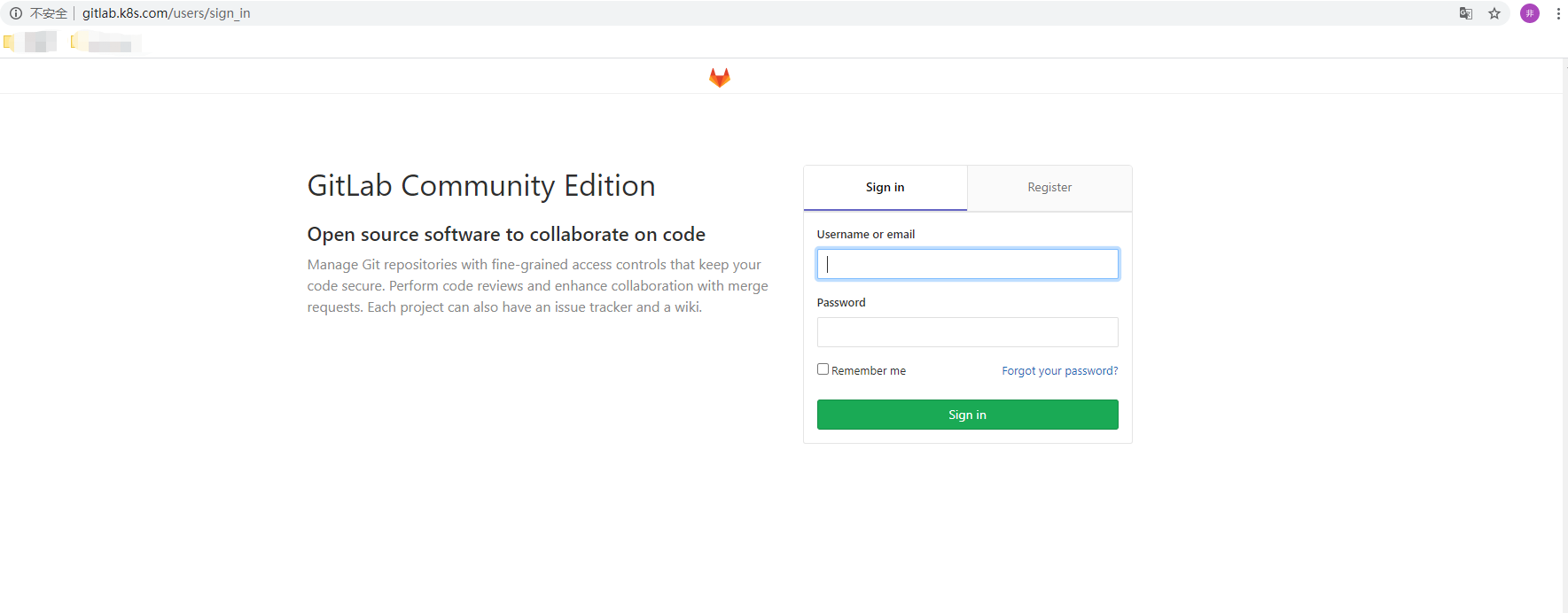

看到都已经部署成功了,然后我们可以通过 Ingress 中定义的域名gitlab.k8s.com(需要做 DNS 解析或者在本地 /etc/hosts 中添加映射)来访问 Portal

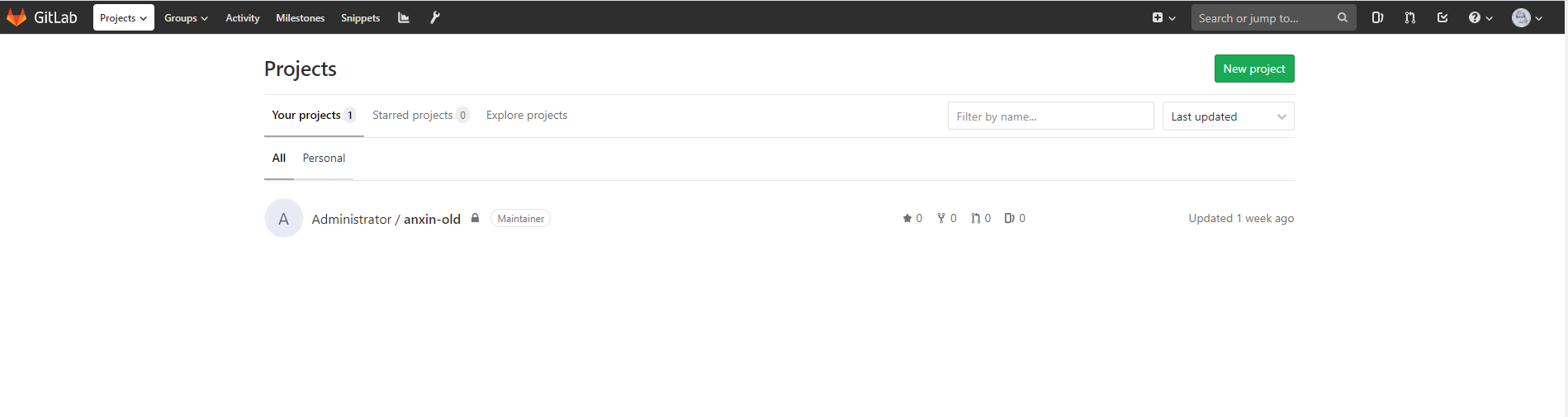

使用用户名 root,和部署的时候指定的超级用户密码GITLAB_ROOT_PASSWORD=123456(上述文件中设置)即可登录进入到首页

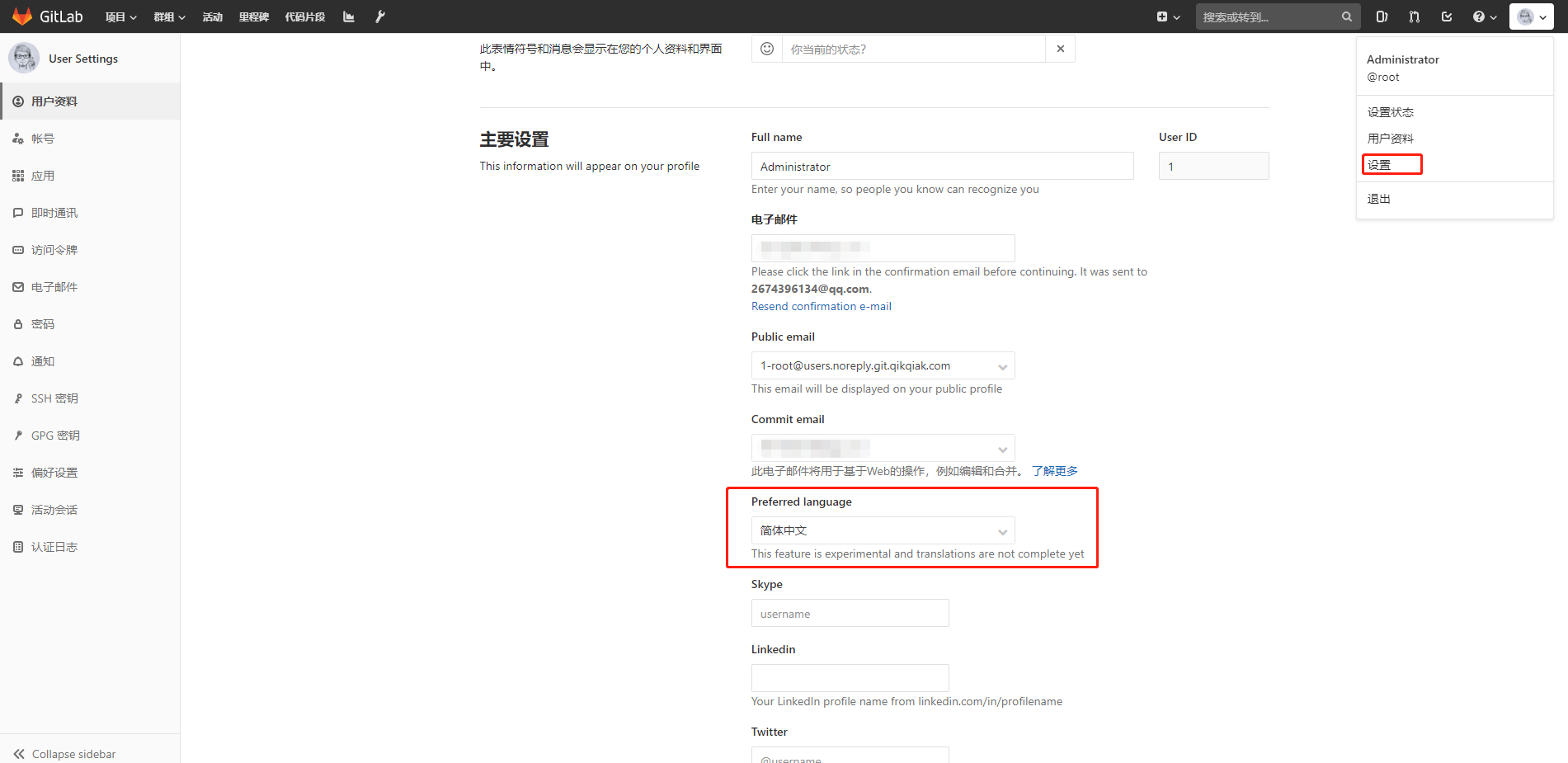

设置中文
