系统环境

• Prometheus 版本: 2.36.0

• Kubernetes 版本: 1.23.0

• dingtalk 版本: 2.1.0

prometheus-webhook-dingtalk是一个开源的钉钉告警的插件，目前最新版停留于v2.1.0

配置钉钉机器人

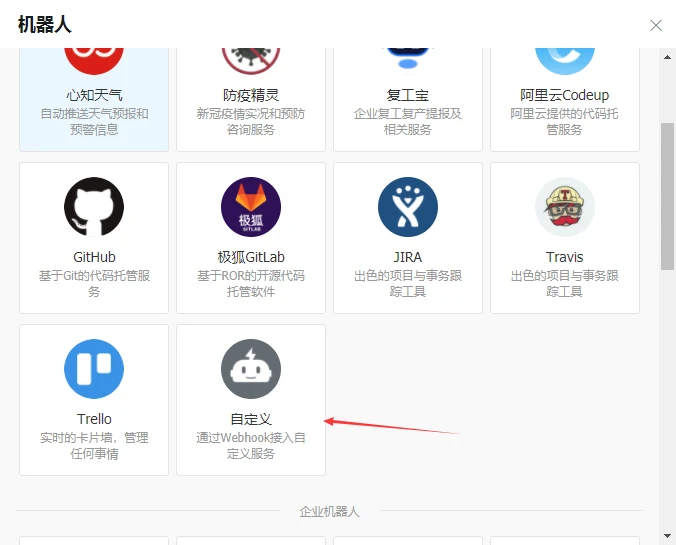

使用钉钉进行添加群机器人

dingtalk部署

[root@k8s-master-01 monitoring]# vim dingtalk.yaml
apiVersion: v1
kind: Service
metadata:
  name: dingtalk
  namespace: monitoring
spec:
  selector:
    app: dingtalk
  ports:
    - name: http
      protocol: TCP
      port: 8060
      targetPort: 8060
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: dingtalk
  namespace: monitoring
  labels:
    app: dingtalk
spec:
  replicas: 1
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  selector:
    matchLabels:
      app: dingtalk
  template:
    metadata:
      labels:
        app: dingtalk
    spec:
      restartPolicy: "Always"
      containers:
        - name: dingtalk
          image: timonwong/prometheus-webhook-dingtalk:v2.1.0
          imagePullPolicy: "IfNotPresent"
          volumeMounts:
            - name: dingtalk-conf
              mountPath: /etc/prometheus-webhook-dingtalk/
          resources:
            limits:
              cpu: "400m"
              memory: "500Mi"
            requests:
              cpu: "100m"
              memory: "100Mi"
          ports:
            - containerPort: 8060
              name: http
              protocol: TCP
          readinessProbe:
            failureThreshold: 3
            periodSeconds: 5
            initialDelaySeconds: 30
            successThreshold: 1
            tcpSocket:
              port: 8060
          livenessProbe:
            tcpSocket:
              port: 8060
            initialDelaySeconds: 30
            periodSeconds: 10
      volumes:
        - name: dingtalk-conf
          configMap:
            name: dingtalk-cm

钉钉告警模板

如部分值显示为空，要根据实际情况进行修改

[root@k8s-master-01 monitoring]# vim dingtalk-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: dingtalk-cm
  namespace: monitoring
data:
  config.yml: |-
    templates:
      - /etc/prometheus-webhook-dingtalk/dingding.tmpl
    targets:
      webhook:
        url: https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxxxxxxxxxxx
        secret: "****************************"
        message:
          text: '{{ template "dingtalk.to.message" . }}'
  dingding.tmpl: |-
    {{ define "dingtalk.to.message" }}
    {{- if gt (len .Alerts.Firing) 0 -}}
    {{- range $index, $alert := .Alerts -}}
    {{- if eq $index 0 }}
    ========= 监控报警 ========={{ "\n" }}
    **告警状态:** {{   .Status }}{{ "\n" }}
    **告警级别:** {{ .Labels.level }}{{ "\n" }}
    **告警类型:** {{ $alert.Labels.alertname }}{{ "\n" }}
    **故障主机:** {{ $alert.Labels.instance }}{{ "\n" }}
    **告警主题:** {{ $alert.Annotations.summary }}{{ "\n" }}
    **告警详情:** {{ $alert.Annotations.message }}{{ $alert.Annotations.description}};{{ "\n" }}
    **触发阀值:** {{ .Annotations.value }}{{ "\n" }}
    **故障时间:** {{ ($alert.StartsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}{{ "\n" }}
    ========= = end =  =========
    {{- end }}
    {{- end }}
    {{- end }}
    {{- if gt (len .Alerts.Resolved) 0 -}}
    {{- range $index, $alert := .Alerts -}}
    {{- if eq $index 0 }}
    ========= 告警恢复 ========={{ "\n" }}
    **告警类型:** {{ .Labels.alertname }}{{ "\n" }}
    **告警状态:** {{   .Status }}{{ "\n" }}
    **告警主题:** {{ $alert.Annotations.summary }}{{ "\n" }}
    **告警详情:** {{ $alert.Annotations.message }}{{ $alert.Annotations.description}};{{ "\n" }}
    **故障时间:** {{ ($alert.StartsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}{{ "\n" }}
    **恢复时间:** {{ ($alert.EndsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}{{ "\n" }}
    {{- if gt (len $alert.Labels.instance) 0 }}
    **实例信息:** {{ $alert.Labels.instance }}{{ "\n" }}
    {{- end }}
    ========= = end =  =========
    {{- end }}
    {{- end }}
    {{- end }}
    {{- end }}

配置钉钉webhook

[root@k8s-master-01 monitoring]# vim alertmanager-config.yaml
...
    route:
      group_by: ['env','instance','type','group','job','alertname','cluster']
      group_wait: 10s
      group_interval: 2m
      repeat_interval: 10m
      receiver: 'webhook'
      routes:
      - receiver: 'email'
        match:
          severity: info
    receivers:
    - name: 'webhook'
      webhook_configs:
      - send_resolved: true
        url: 'http://dingtalk:8060/dingtalk/webhook/send'
...

部署并检查

[root@k8s-master-01 monitoring]# kubectl apply -f alertmanager-config.yaml
[root@k8s-master-01 monitoring]# kubectl apply -f dingtalk-configmap.yaml
[root@k8s-master-01 monitoring]# kubectl apply -f dingtalk.yaml
#查看是否部署成功
[root@k8s-master-01 monitoring]# kubectl get pods -n  monitoring | grep dingtalk
dingtalk-5869c868b7-mmvf7       1/1     Running   0          4min

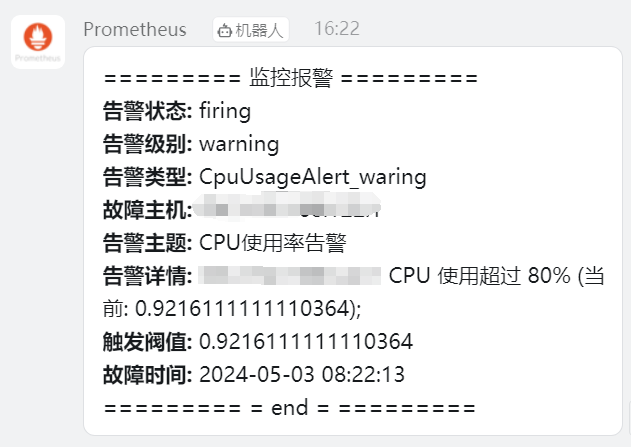

dingtalk部署成功后，重新部署alertmanager就行了，报警信息如下
