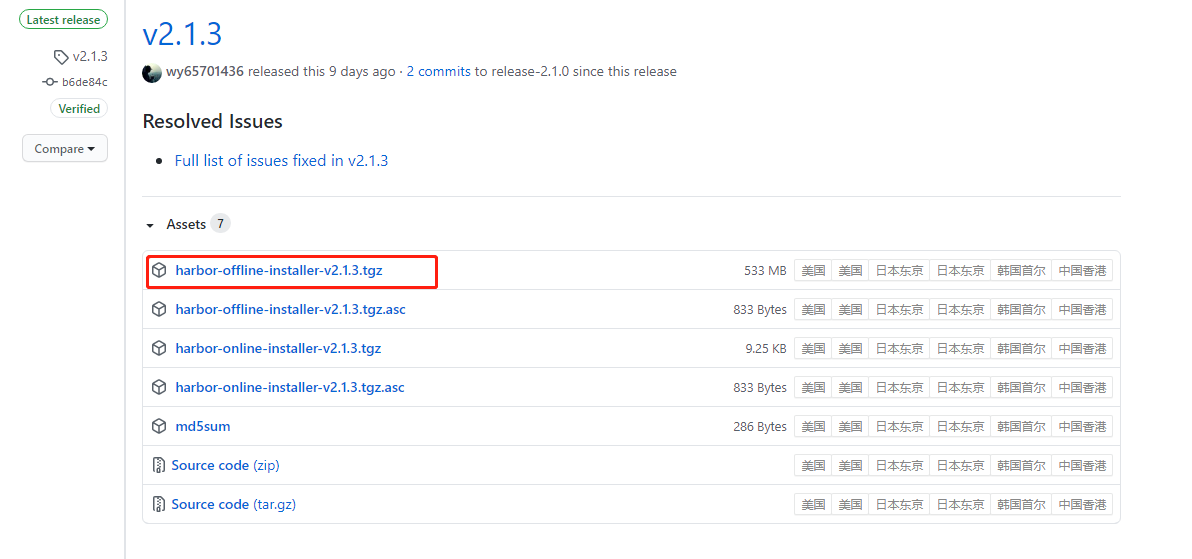

Harbor是由VMware公司中国团队为企业用户设计的企业级私有Registry服务，Harbor提供了更好的性能和安全。提升用户使用Registry构建和运行环境传输镜像的效率。Harbor支持安装在多个Registry节点的镜像资源复制，镜像全部保存在私有Registry中， 确保数据和知识产权在公司内部网络中管控。另外，Harbor也提供了高级的安全特性，诸如用户管理，访问控制和活动审计等 # 安装Harbor harbor的安装依赖docker和docker-compose，确认基础环境已安装好docker和docker-compose后，访问harbor官方git仓库[Releases · goharbor/harbor (github.com)](https://github.com/goharbor/harbor/releases)下载release版本:  下载完成后，解压出的目录内，有prepare可执行文件，用来做安装前的环境检查，将harbor.yml.tmpl文件重命名为harbor.yml，编辑该文件，修改内容如下： - hostname: reg.mydomain.com，修改为当前服务器IP，或者为harbor准备的域名，用来访问harbor - 如果不使用https，需要注释掉https的所有项，不建议使用harbor提供的https，应当通过nginx反向代理实现https ```bash https: # https port for harbor, default is 443 port: 443 # The path of cert and key files for nginx certificate: /your/certificate/path private_key: /your/private/key/path ``` - harbor_admin_password: Harbor12345：harbor的UI后台管理员密码 - 数据库配置，数据库密码安装完成后无法修改，所以安装前必须设置 ```bash database: # The password for the root user of Harbor DB. Change this before any production use. password: root123 # The maximum number of connections in the idle connection pool. If it <=0, no idle connections are retained. max_idle_conns: 50 # The maximum number of open connections to the database. If it <= 0, then there is no limit on the number of open connections. # Note: the default number of connections is 1024 for postgres of harbor. max_open_conns: 1000 ``` - 数据存储配置，默认harbor的数据卷配置为/data，建议修改为其他路径 ```bash #更改数据目录 data_volume: /data/harbor/db ``` - 日志相关配置，建议修改日志保存位置 ```bash log: # options are debug, info, warning, error, fatal level: info # configs for logs in local storage local: # Log files are rotated log_rotate_count times before being removed. If count is 0, old versions are removed rather than rotated. rotate_count: 50 # Log files are rotated only if they grow bigger than log_rotate_size bytes. If size is followed by k, thesize is assumed to be in kilobytes. # If the M is used, the size is in megabytes, and if G is used, the size is in gigabytes. So size 100, size 100k, size 100M and size 100G # are all valid. rotate_size: 200M # The directory on your host that store log location: /var/log/harbor ``` - 如果使用外部反向代理访问harbor，则需要取消external_url选项的注释，然后配置相应的URL 配置完成后，依次执行./prepare(添加扫描模块) ，./install进行安装。安装完成后，就可以通过ip或域名访问harbor，如果要使用harbor的镜像扫描器，那么需要重新执行./prepare --with-clair添加harbor自带的扫描器，然后使用docker-compose -f docker-compose.yml up -d重新创建容器 # Harbor https配置 在实际的生产环境中，服务器上可能同时还运行着其他的站点，通过nginx反代或者负载均衡器访问，所以我们通过配置nginx反向代理来实现harbor的https访问 ## harbor配置 首先修改harbor.yml，将hostname修改为域名，并将默认的http监听的80端口改成其他端口，然后打开external_uarl配置，其他配置和之前保持一致 ```bash hostname:harbor.xxx.cn # http related config http: # port for http, default is 80. If https enabled, this port will redirect to https port port: 8081 # https related config #https: # https port for harbor, default is 443 # port: 4433 # The path of cert and key files for nginx # certificate: /data/harbor/ssl/harbor.evobot.cn_chain.crt # private_key: /data/harbor/ssl/harbor.evobot.cn_key.key # # Uncomment following will enable tls communication between all harbor components # internal_tls: # # set enabled to true means internal tls is enabled # enabled: true # # put your cert and key files on dir # dir: /etc/harbor/tls/internal # Uncomment external_url if you want to enable external proxy # And when it enabled the hostname will no longer used external_url: https://harbor.xxx.cn ``` 然后依次执行./prepare，./install 进行安装，安装完成后，harbor的各个容器会自动启动，因为修改了默认的http端口，所以在安装完成后，还需要修改common/config/core/env文件，否则在执行docker login时会出现如下报错： ```bash Error response from daemon: Get https://harbor.xxx.cn/v2/: Get http://harbor.xxx:8081/service/token?account=hill.li&client_id=docker&offline_token=true&service=harbor-registry: net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers) (Client.Timeout exceeded while awaiting headers) ``` env文件中的EXT_ENDPOINT默认是http并且带有修改后端口的值，如果这个端口在服务器上没有开放访问，那么会导致我们无法成功执行docker push ```bash EXT_ENDPOINT=http://harbor.ndgratus.cn:8081 ``` 将地址改为我们的https地址,并删除端口号如下 ```bash EXT_ENDPOINT=https://harbor.ndgratus.cn ``` 保存后，执行docker-compose up -d重新启动harbor容器 ## nginx配置 ```bash upstream harbor { server localhost:8081 weight=1; } server{ listen 80; server_name harbor.xxx.cn; return 301 https://harbor.xxx.cn$request_uri; } server{ listen 443 ssl http2; server_name harbor.xxx.cn; ssl_certificate /etc/nginx/ssl/harbor.xxx.cn.crt; ssl_certificate_key /etc/nginx/ssl/harbor.xxx.cn.key; ssl_session_timeout 5m; ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4; ssl_protocols TLSv1 TLSv1.1 TLSv1.2; ssl_prefer_server_ciphers on; location / { proxy_pass http://harbor; client_max_body_size 2g; client_body_buffer_size 512k; proxy_buffer_size 4k; proxy_buffers 6 32k; proxy_buffering off; proxy_request_buffering off; proxy_busy_buffers_size 64k; proxy_temp_file_write_size 512k; #proxy_set_header Host $host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection "Upgrade"; proxy_set_header X-Forwarded-Proto $scheme; } } ``` nginx的配置中，需要注意两个配置： - 一个是client_max_body_size，这个值如果配置的过小，会导致docker push体积比较大的镜像时失败，所以根据实际需求配置相应的大小 - 第二个是proxy_set_header Host $host;，这个配置是注释掉的，如果打开这个配置，会导致docker push镜像时报错unknown blob 配置完成后启动nginx就可以使用https进行镜像的pull和push # 模拟镜像推送 ## 推送 默认docker是禁止使用http进行镜像推送和拉取的，所以如果没有配置https，需要在/etc/docker/daemon.json中添加配置 ```bash { "registry-mirrors": ["http://harbor.xxx.cn"], "insecure-registries": ["harbor.xxx"] } ``` 然后使用下面的命令给镜像打tag ```bash docker tag mysql:5.7 harbor.xxx.cn/library/mysql:5.7 ``` 接着使用docker登陆到harbor ```bash docker login harbor.xxx.cn -uadmin -pxxxx ``` 执行push ```bash docker push harbor.xxx.cn/library/mysql:5.7 ``` ## 拉取 在harbor仓库里得镜像，harbor提供了直接命令可以直接拉取 ```bash docker pull harbor.xxx.cn/library/mysql@sha256:82a3bf0e57ad53ae65cef3b0aa3a93a1508490e20db0cf6c4e8da776f1e1f48d ```
