系统环境
Apollo 版本:1.7.0
Kubernetes 版本:1.15.4
参考:Apollo Github 地址:https://github.com/ctripcorp/apollo
注意:部署比较复杂,极容易出错,请严格按步骤执行!

Apollo简介

Apollo(阿波罗)是携程框架部门研发的分布式配置中心,能够集中化管理应用不同环境、不同集群的配置,配置修改后能够实时推送到应用端,并且具备规范的权限、流程治理等特性,适用于微服务配置管理场景
服务端基于 Spring Boot 和 Spring Cloud 开发,打包后可以直接运行,不需要额外安装Tomcat等应用容器。且 Java 客户端不依赖任何框架,能够运行于所有 Java 运行时环境,同时对 Spring/Spring Boot 环境也有较好的支持

Apollo特性

部署简单
灰度发布
版本发布管理
提供开放平台API
客户端配置信息监控
提供Java和.Net原生客户端
配置修改实时生效(热发布)
权限管理、发布审核、操作审计
统一管理不同环境、不同集群的配置

Apollo环境描述

apollo原生支持dev,fat,uat,prod环境,需要增加test, release, pre三个环境,目前只能通过编译源代码实现

配置Java和Maven环境

[Maven安装包](链接:https://pan.baidu.com/s/1la-S8KHwV39JBXmkc2NjGQ 提取码:a7dg)
[java安装包](链接:https://pan.baidu.com/s/10uP_7Zq3wRA8TSQDOh3fdA 提取码:dqob)

[root@k8s-master home]# rpm -ivh jdk-8u221-linux-x64.rpm
[root@k8s-master home]# tar -zxvf apache-maven-3.5.5-bin.tar.gz -C /usr/local/maven/
#设置环境变量
[root@k8s-master home]# vim /etc/profile
#添加如下内容:
PATH=$PATH:/usr/local/php/bin
export MAVEN_HOME=/usr/local/maven/apache-maven-3.5.4
export PATH=$PATH:$MAVEN_HOME/bin
#使之生效
[root@k8s-master home]# source /etc/profile

修改源码并编译

#下载源码
[root@k8s-master home]# cd /home
[root@k8s-master home]# git clone https://github.com/ctripcorp/apollo.git
正克隆到 'apollo'...
remote: Enumerating objects: 2, done.
remote: Counting objects: 100% (2/2), done.
remote: Compressing objects: 100% (2/2), done.
remote: Total 96381 (delta 0), reused 0 (delta 0), pack-reused 96379
接收对象中: 100% (96381/96381), 44.59 MiB | 2.56 MiB/s, done.
处理 delta 中: 100% (72261/72261), done.

修改/home/apollo/apollo-core/src/main/java/com/ctrip/framework/apollo/core/enums/Env.java, 加入 test, release ,pre枚举
修改/home/apollo/apollo-core/src/main/java/com/ctrip/framework/apollo/core/enums/EnvUtils.java,加入转换三个环境的转换逻辑

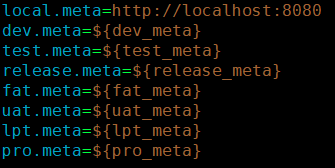

修改/home/apollo/apollo-portal/src/main/resources/apollo-env.properties, 增加三个环境的占位符

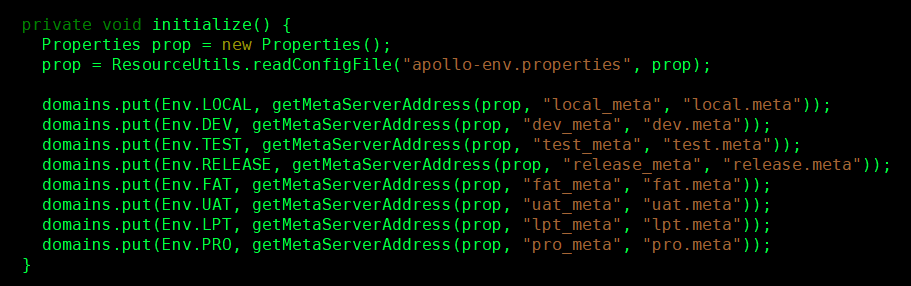

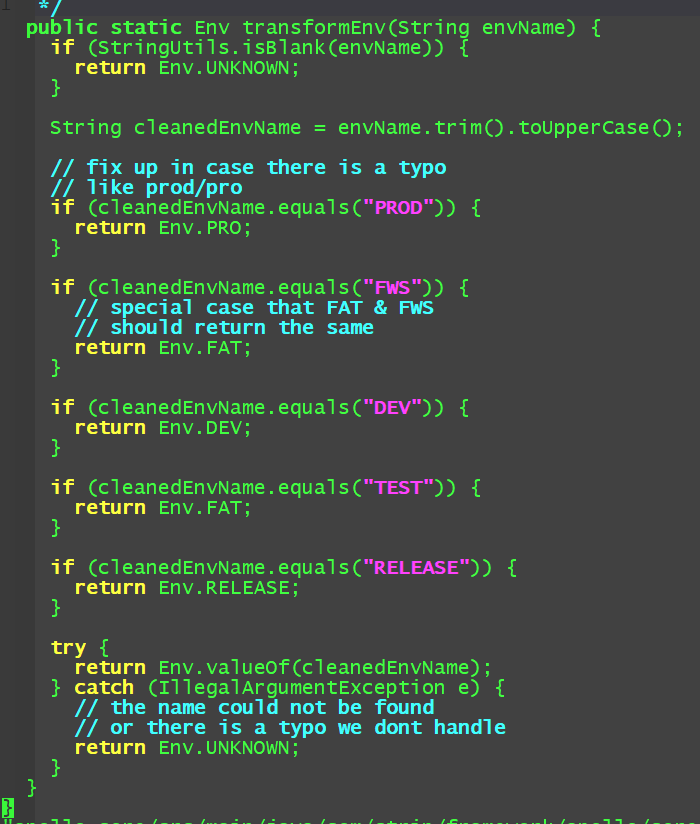

修改/home/apollo/apollo-core/src/main/java/com/ctrip/framework/apollo/core/internals/LegacyMetaServerProvider.java,增加读取三个环境的meta server地址逻辑

执行构建

部署apollo所需数据库

可在k8s部署也可以其它方式部署,本文采取helm部署

[root@k8s-master home]# kubectl create ns sre
[root@k8s-master home]# helm repo update
[root@k8s-master home]# helm fetch stable/mysql
[root@k8s-master home]# cd mysql && vim values.yaml
#修改values.yaml三处:image改为:5.7.27, 添加pvc的storageclass: managed-nfs-storage, NodePort:33016
[root@k8s-master home]# helm install -name apollo-mysql --namespace=sre .
[root@k8s-master mysql]# kubectl get -n sre po
NAME                            READY   STATUS    RESTARTS   AGE
apollo-mysql-7945c497bc-cjkkj   1/1     Running   0          13s
[root@k8s-master mysql]# kubectl get -n sre svc
NAME           TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
apollo-mysql   NodePort   10.108.217.48   <none>        3306:30316/TCP   17s

#查看root密码,并且授权远程登录
[root@k8s-master ~]# kubectl get -n sre secrets apollo-mysql -oyaml|grep root-password
  mysql-root-password: V2pUZFJMWlJuOA==
[root@k8s-master ~]# echo V2pUZFJMWlJuOA== |base64 -d
WjTdRLZRn8

[root@k8s-master mysql]# kubectl exec -it -n sre apollo-mysql-7945c497bc-cjkkj -- mysql -u root -pWjTdRLZRn8
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 111
Server version: 5.7.27 MySQL Community Server (GPL)

Copyright (c) 2000, 2019, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> GRANT ALL PRIVILEGES ON *.* TO 'root'@'%' IDENTIFIED BY '123456' WITH GRANT OPTION;
Query OK, 0 rows affected, 1 warning (0.04 sec)

mysql> flush privileges;
Query OK, 0 rows affected (0.00 sec)

初始化数据库

初始化脚本

/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;

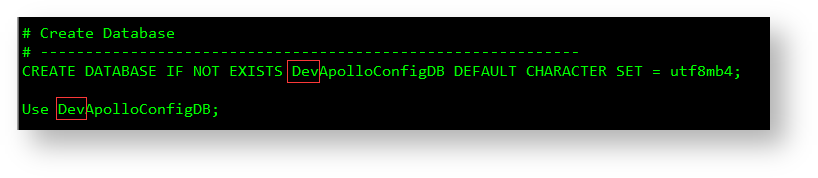

# Create Database
# ------------------------------------------------------------
CREATE DATABASE IF NOT EXISTS ApolloConfigDB DEFAULT CHARACTER SET = utf8mb4;

Use ApolloConfigDB;

# Dump of table app
# ------------------------------------------------------------

DROP TABLE IF EXISTS `App`;

CREATE TABLE `App` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `AppId` (`AppId`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Name` (`Name`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用表';



# Dump of table appnamespace
# ------------------------------------------------------------

DROP TABLE IF EXISTS `AppNamespace`;

CREATE TABLE `AppNamespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT 'namespace名字,注意,需要全局唯一',
  `AppId` varchar(32) NOT NULL DEFAULT '' COMMENT 'app id',
  `Format` varchar(32) NOT NULL DEFAULT 'properties' COMMENT 'namespace的format类型',
  `IsPublic` bit(1) NOT NULL DEFAULT b'0' COMMENT 'namespace是否为公共',
  `Comment` varchar(64) NOT NULL DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT '' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_AppId` (`AppId`),
  KEY `Name_AppId` (`Name`,`AppId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用namespace定义';



# Dump of table audit
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Audit`;

CREATE TABLE `Audit` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `EntityName` varchar(50) NOT NULL DEFAULT 'default' COMMENT '表名',
  `EntityId` int(10) unsigned DEFAULT NULL COMMENT '记录ID',
  `OpName` varchar(50) NOT NULL DEFAULT 'default' COMMENT '操作类型',
  `Comment` varchar(500) DEFAULT NULL COMMENT '备注',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='日志审计表';



# Dump of table cluster
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Cluster`;

CREATE TABLE `Cluster` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT '集群名字',
  `AppId` varchar(32) NOT NULL DEFAULT '' COMMENT 'App id',
  `ParentClusterId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '父cluster',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT '' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_AppId_Name` (`AppId`,`Name`),
  KEY `IX_ParentClusterId` (`ParentClusterId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='集群';



# Dump of table commit
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Commit`;

CREATE TABLE `Commit` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `ChangeSets` longtext NOT NULL COMMENT '修改变更集',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `Comment` varchar(500) DEFAULT NULL COMMENT '备注',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `AppId` (`AppId`(191)),
  KEY `ClusterName` (`ClusterName`(191)),
  KEY `NamespaceName` (`NamespaceName`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='commit 历史表';

# Dump of table grayreleaserule
# ------------------------------------------------------------

DROP TABLE IF EXISTS `GrayReleaseRule`;

CREATE TABLE `GrayReleaseRule` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Cluster Name',
  `NamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Namespace Name',
  `BranchName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'branch name',
  `Rules` varchar(16000) DEFAULT '[]' COMMENT '灰度规则',
  `ReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '灰度对应的release',
  `BranchStatus` tinyint(2) DEFAULT '1' COMMENT '灰度分支状态: 0:删除分支,1:正在使用的规则 2:全量发布',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Namespace` (`AppId`,`ClusterName`,`NamespaceName`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='灰度规则表';


# Dump of table instance
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Instance`;

CREATE TABLE `Instance` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `DataCenter` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'Data Center Name',
  `Ip` varchar(32) NOT NULL DEFAULT '' COMMENT 'instance ip',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_UNIQUE_KEY` (`AppId`,`ClusterName`,`Ip`,`DataCenter`),
  KEY `IX_IP` (`Ip`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='使用配置的应用实例';



# Dump of table instanceconfig
# ------------------------------------------------------------

DROP TABLE IF EXISTS `InstanceConfig`;

CREATE TABLE `InstanceConfig` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `InstanceId` int(11) unsigned DEFAULT NULL COMMENT 'Instance Id',
  `ConfigAppId` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config App Id',
  `ConfigClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config Cluster Name',
  `ConfigNamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config Namespace Name',
  `ReleaseKey` varchar(64) NOT NULL DEFAULT '' COMMENT '发布的Key',
  `ReleaseDeliveryTime` timestamp NULL DEFAULT NULL COMMENT '配置获取时间',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_UNIQUE_KEY` (`InstanceId`,`ConfigAppId`,`ConfigNamespaceName`),
  KEY `IX_ReleaseKey` (`ReleaseKey`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Valid_Namespace` (`ConfigAppId`,`ConfigClusterName`,`ConfigNamespaceName`,`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用实例的配置信息';



# Dump of table item
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Item`;

CREATE TABLE `Item` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `NamespaceId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '集群NamespaceId',
  `Key` varchar(128) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Value` longtext NOT NULL COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `LineNum` int(10) unsigned DEFAULT '0' COMMENT '行号',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_GroupId` (`NamespaceId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置项目';



# Dump of table namespace
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Namespace`;

CREATE TABLE `Namespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'Cluster Name',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'Namespace Name',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `AppId_ClusterName_NamespaceName` (`AppId`(191),`ClusterName`(191),`NamespaceName`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_NamespaceName` (`NamespaceName`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='命名空间';



# Dump of table namespacelock
# ------------------------------------------------------------

DROP TABLE IF EXISTS `NamespaceLock`;

CREATE TABLE `NamespaceLock` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增id',
  `NamespaceId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '集群NamespaceId',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT 'default' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  `IsDeleted` bit(1) DEFAULT b'0' COMMENT '软删除',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_NamespaceId` (`NamespaceId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='namespace的编辑锁';



# Dump of table release
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Release`;

CREATE TABLE `Release` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `ReleaseKey` varchar(64) NOT NULL DEFAULT '' COMMENT '发布的Key',
  `Name` varchar(64) NOT NULL DEFAULT 'default' COMMENT '发布名字',
  `Comment` varchar(256) DEFAULT NULL COMMENT '发布说明',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `Configurations` longtext NOT NULL COMMENT '发布配置',
  `IsAbandoned` bit(1) NOT NULL DEFAULT b'0' COMMENT '是否废弃',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `AppId_ClusterName_GroupName` (`AppId`(191),`ClusterName`(191),`NamespaceName`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_ReleaseKey` (`ReleaseKey`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布';


# Dump of table releasehistory
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ReleaseHistory`;

CREATE TABLE `ReleaseHistory` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `BranchName` varchar(32) NOT NULL DEFAULT 'default' COMMENT '发布分支名',
  `ReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '关联的Release Id',
  `PreviousReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '前一次发布的ReleaseId',
  `Operation` tinyint(3) unsigned NOT NULL DEFAULT '0' COMMENT '发布类型,0: 普通发布,1: 回滚,2: 灰度发布,3: 灰度规则更新,4: 灰度合并回主分支发布,5: 主分支发布灰度自动发布,6: 主分支回滚灰度自动发布,7: 放弃灰度',
  `OperationContext` longtext NOT NULL COMMENT '发布上下文信息',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_Namespace` (`AppId`,`ClusterName`,`NamespaceName`,`BranchName`),
  KEY `IX_ReleaseId` (`ReleaseId`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布历史';


# Dump of table releasemessage
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ReleaseMessage`;

CREATE TABLE `ReleaseMessage` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Message` varchar(1024) NOT NULL DEFAULT '' COMMENT '发布的消息内容',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Message` (`Message`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布消息';



# Dump of table serverconfig
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ServerConfig`;

CREATE TABLE `ServerConfig` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Key` varchar(64) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Cluster` varchar(32) NOT NULL DEFAULT 'default' COMMENT '配置对应的集群,default为不针对特定的集群',
  `Value` varchar(2048) NOT NULL DEFAULT 'default' COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_Key` (`Key`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置服务自身配置';

# Dump of table accesskey
# ------------------------------------------------------------

DROP TABLE IF EXISTS `AccessKey`;

CREATE TABLE `AccessKey` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Secret` varchar(128) NOT NULL DEFAULT '' COMMENT 'Secret',
  `IsEnabled` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: enabled, 0: disabled',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) NOT NULL DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `AppId` (`AppId`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='访问密钥';

# Config
# ------------------------------------------------------------

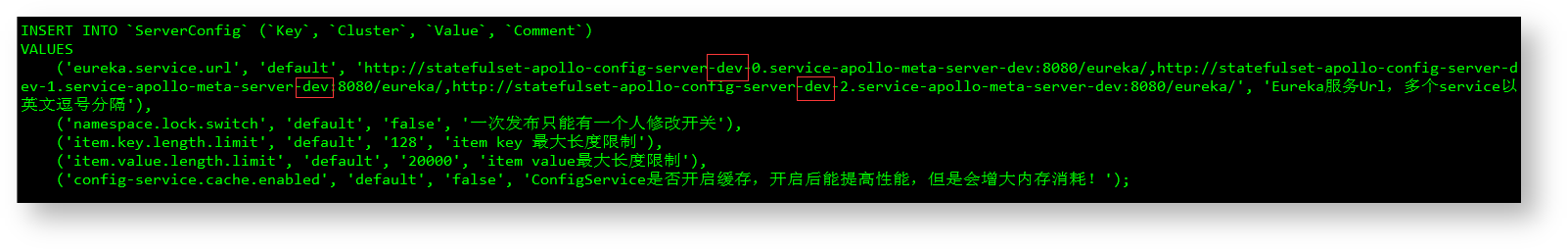

INSERT INTO `ServerConfig` (`Key`, `Cluster`, `Value`, `Comment`)
VALUES
    ('eureka.service.url', 'default', 'http://localhost:8080/eureka/', 'Eureka服务Url,多个service以英文逗号分隔'),
    ('namespace.lock.switch', 'default', 'false', '一次发布只能有一个人修改开关'),
    ('item.key.length.limit', 'default', '128', 'item key 最大长度限制'),
    ('item.value.length.limit', 'default', '20000', 'item value最大长度限制'),
    ('config-service.cache.enabled', 'default', 'false', 'ConfigService是否开启缓存,开启后能提高性能,但是会增大内存消耗!');

/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;

# Create Database
# ------------------------------------------------------------
CREATE DATABASE IF NOT EXISTS ApolloPortalDB DEFAULT CHARACTER SET = utf8mb4;

Use ApolloPortalDB;

# Dump of table app
# ------------------------------------------------------------

DROP TABLE IF EXISTS `App`;

CREATE TABLE `App` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `AppId` (`AppId`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Name` (`Name`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用表';



# Dump of table appnamespace
# ------------------------------------------------------------

DROP TABLE IF EXISTS `AppNamespace`;

CREATE TABLE `AppNamespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT 'namespace名字,注意,需要全局唯一',
  `AppId` varchar(32) NOT NULL DEFAULT '' COMMENT 'app id',
  `Format` varchar(32) NOT NULL DEFAULT 'properties' COMMENT 'namespace的format类型',
  `IsPublic` bit(1) NOT NULL DEFAULT b'0' COMMENT 'namespace是否为公共',
  `Comment` varchar(64) NOT NULL DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT '' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_AppId` (`AppId`),
  KEY `Name_AppId` (`Name`,`AppId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用namespace定义';



# Dump of table consumer
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Consumer`;

CREATE TABLE `Consumer` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `AppId` (`AppId`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='开放API消费者';



# Dump of table consumeraudit
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ConsumerAudit`;

CREATE TABLE `ConsumerAudit` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ConsumerId` int(11) unsigned DEFAULT NULL COMMENT 'Consumer Id',
  `Uri` varchar(1024) NOT NULL DEFAULT '' COMMENT '访问的Uri',
  `Method` varchar(16) NOT NULL DEFAULT '' COMMENT '访问的Method',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_ConsumerId` (`ConsumerId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='consumer审计表';



# Dump of table consumerrole
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ConsumerRole`;

CREATE TABLE `ConsumerRole` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ConsumerId` int(11) unsigned DEFAULT NULL COMMENT 'Consumer Id',
  `RoleId` int(10) unsigned DEFAULT NULL COMMENT 'Role Id',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) DEFAULT '' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_RoleId` (`RoleId`),
  KEY `IX_ConsumerId_RoleId` (`ConsumerId`,`RoleId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='consumer和role的绑定表';



# Dump of table consumertoken
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ConsumerToken`;

CREATE TABLE `ConsumerToken` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `ConsumerId` int(11) unsigned DEFAULT NULL COMMENT 'ConsumerId',
  `Token` varchar(128) NOT NULL DEFAULT '' COMMENT 'token',
  `Expires` datetime NOT NULL DEFAULT '2099-01-01 00:00:00' COMMENT 'token失效时间',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_Token` (`Token`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='consumer token表';

# Dump of table favorite
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Favorite`;

CREATE TABLE `Favorite` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `UserId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '收藏的用户',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Position` int(32) NOT NULL DEFAULT '10000' COMMENT '收藏顺序',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `AppId` (`AppId`(191)),
  KEY `IX_UserId` (`UserId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB AUTO_INCREMENT=23 DEFAULT CHARSET=utf8mb4 COMMENT='应用收藏表';

# Dump of table permission
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Permission`;

CREATE TABLE `Permission` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `PermissionType` varchar(32) NOT NULL DEFAULT '' COMMENT '权限类型',
  `TargetId` varchar(256) NOT NULL DEFAULT '' COMMENT '权限对象类型',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT '' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_TargetId_PermissionType` (`TargetId`(191),`PermissionType`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='permission表';



# Dump of table role
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Role`;

CREATE TABLE `Role` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `RoleName` varchar(256) NOT NULL DEFAULT '' COMMENT 'Role name',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_RoleName` (`RoleName`(191)),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='角色表';



# Dump of table rolepermission
# ------------------------------------------------------------

DROP TABLE IF EXISTS `RolePermission`;

CREATE TABLE `RolePermission` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `RoleId` int(10) unsigned DEFAULT NULL COMMENT 'Role Id',
  `PermissionId` int(10) unsigned DEFAULT NULL COMMENT 'Permission Id',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) DEFAULT '' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_RoleId` (`RoleId`),
  KEY `IX_PermissionId` (`PermissionId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='角色和权限的绑定表';



# Dump of table serverconfig
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ServerConfig`;

CREATE TABLE `ServerConfig` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Key` varchar(64) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Value` varchar(2048) NOT NULL DEFAULT 'default' COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_Key` (`Key`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置服务自身配置';



# Dump of table userrole
# ------------------------------------------------------------

DROP TABLE IF EXISTS `UserRole`;

CREATE TABLE `UserRole` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `UserId` varchar(128) DEFAULT '' COMMENT '用户身份标识',
  `RoleId` int(10) unsigned DEFAULT NULL COMMENT 'Role Id',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) DEFAULT '' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_RoleId` (`RoleId`),
  KEY `IX_UserId_RoleId` (`UserId`,`RoleId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='用户和role的绑定表';

# Dump of table Users
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Users`;

CREATE TABLE `Users` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Username` varchar(64) NOT NULL DEFAULT 'default' COMMENT '用户名',
  `Password` varchar(64) NOT NULL DEFAULT 'default' COMMENT '密码',
  `Email` varchar(64) NOT NULL DEFAULT 'default' COMMENT '邮箱地址',
  `Enabled` tinyint(4) DEFAULT NULL COMMENT '是否有效',
  PRIMARY KEY (`Id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='用户表';


# Dump of table Authorities
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Authorities`;

CREATE TABLE `Authorities` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Username` varchar(64) NOT NULL,
  `Authority` varchar(50) NOT NULL,
  PRIMARY KEY (`Id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;


# Config
# ------------------------------------------------------------
INSERT INTO `ServerConfig` (`Key`, `Value`, `Comment`)
VALUES

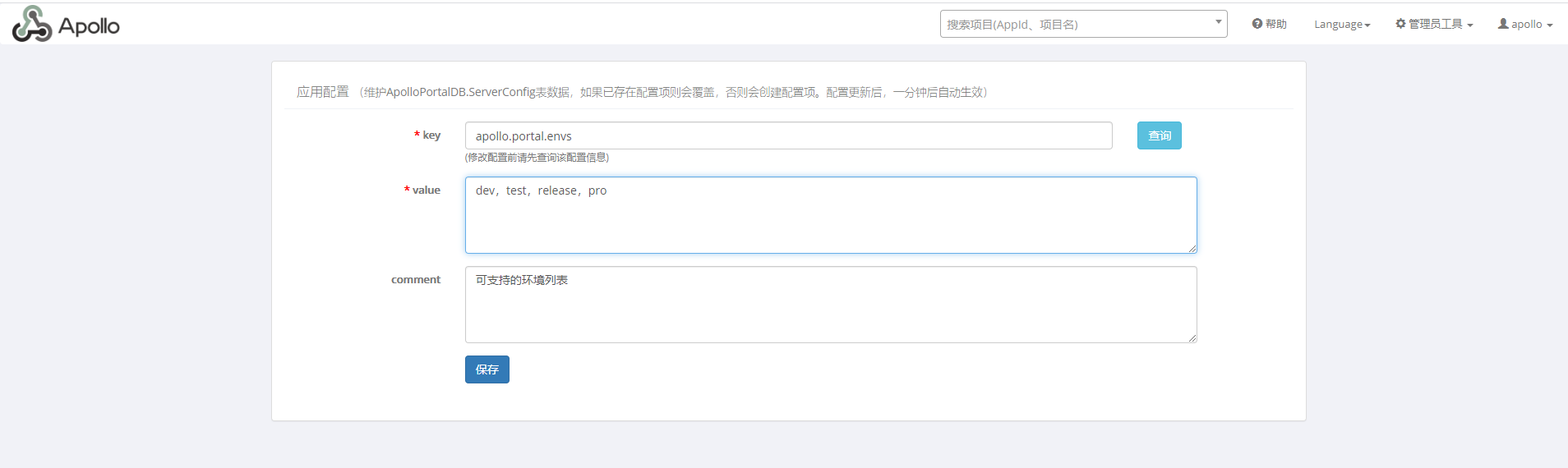

    ('apollo.portal.envs', 'dev', '可支持的环境列表'),
    ('organizations', '[{\"orgId\":\"TEST1\",\"orgName\":\"样例部门1\"},{\"orgId\":\"TEST2\",\"orgName\":\"样例部门2\"}]', '部门列表'),
    ('superAdmin', 'apollo', 'Portal超级管理员'),
    ('api.readTimeout', '10000', 'http接口read timeout'),
    ('consumer.token.salt', 'someSalt', 'consumer token salt'),
    ('admin.createPrivateNamespace.switch', 'true', '是否允许项目管理员创建私有namespace'),

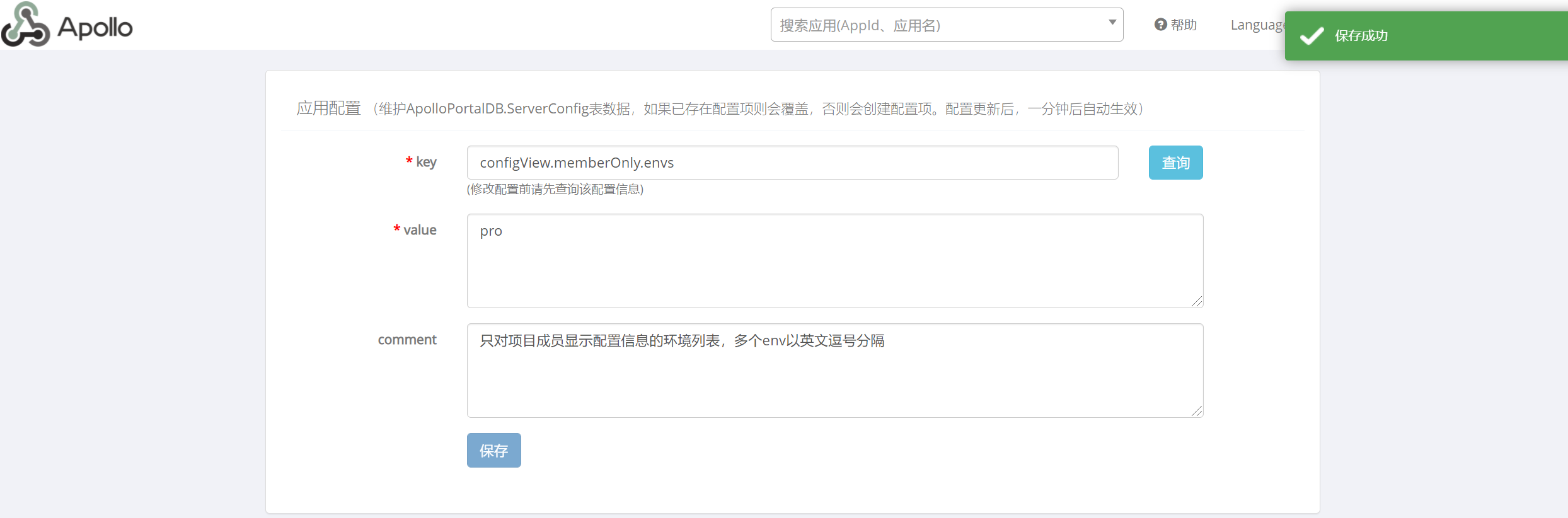

    ('configView.memberOnly.envs', 'pro', '只对项目成员显示配置信息的环境列表,多个env以英文逗号分隔'),
    ('apollo.portal.meta.servers', '{}', '各环境Meta Service列表');


INSERT INTO `Users` (`Username`, `Password`, `Email`, `Enabled`)
VALUES
	('apollo', '$2a$10$7r20uS.BQ9uBpf3Baj3uQOZvMVvB1RN3PYoKE94gtz2.WAOuiiwXS', 'apollo@acme.com', 1);

INSERT INTO `Authorities` (`Username`, `Authority`) VALUES ('apollo', 'ROLE_user');

/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;

添加dev test release pro四个库,执行如下sql,四个环境不同的是库名和metaserver的地址

/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;

# Create Database
# ------------------------------------------------------------
CREATE DATABASE IF NOT EXISTS DevApolloConfigDB DEFAULT CHARACTER SET = utf8mb4;

Use DevApolloConfigDB;

# Dump of table app
# ------------------------------------------------------------

DROP TABLE IF EXISTS `App`;

CREATE TABLE `App` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `Name` varchar(500) NOT NULL DEFAULT 'default' COMMENT '应用名',
  `OrgId` varchar(32) NOT NULL DEFAULT 'default' COMMENT '部门Id',
  `OrgName` varchar(64) NOT NULL DEFAULT 'default' COMMENT '部门名字',
  `OwnerName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerName',
  `OwnerEmail` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ownerEmail',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `AppId` (`AppId`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Name` (`Name`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用表';



# Dump of table appnamespace
# ------------------------------------------------------------

DROP TABLE IF EXISTS `AppNamespace`;

CREATE TABLE `AppNamespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT 'namespace名字,注意,需要全局唯一',
  `AppId` varchar(32) NOT NULL DEFAULT '' COMMENT 'app id',
  `Format` varchar(32) NOT NULL DEFAULT 'properties' COMMENT 'namespace的format类型',
  `IsPublic` bit(1) NOT NULL DEFAULT b'0' COMMENT 'namespace是否为公共',
  `Comment` varchar(64) NOT NULL DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT '' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_AppId` (`AppId`),
  KEY `Name_AppId` (`Name`,`AppId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用namespace定义';



# Dump of table audit
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Audit`;

CREATE TABLE `Audit` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `EntityName` varchar(50) NOT NULL DEFAULT 'default' COMMENT '表名',
  `EntityId` int(10) unsigned DEFAULT NULL COMMENT '记录ID',
  `OpName` varchar(50) NOT NULL DEFAULT 'default' COMMENT '操作类型',
  `Comment` varchar(500) DEFAULT NULL COMMENT '备注',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='日志审计表';



# Dump of table cluster
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Cluster`;

CREATE TABLE `Cluster` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Name` varchar(32) NOT NULL DEFAULT '' COMMENT '集群名字',
  `AppId` varchar(32) NOT NULL DEFAULT '' COMMENT 'App id',
  `ParentClusterId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '父cluster',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT '' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_AppId_Name` (`AppId`,`Name`),
  KEY `IX_ParentClusterId` (`ParentClusterId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='集群';



# Dump of table commit
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Commit`;

CREATE TABLE `Commit` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `ChangeSets` longtext NOT NULL COMMENT '修改变更集',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `Comment` varchar(500) DEFAULT NULL COMMENT '备注',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `AppId` (`AppId`(191)),
  KEY `ClusterName` (`ClusterName`(191)),
  KEY `NamespaceName` (`NamespaceName`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='commit 历史表';

# Dump of table grayreleaserule
# ------------------------------------------------------------

DROP TABLE IF EXISTS `GrayReleaseRule`;

CREATE TABLE `GrayReleaseRule` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',
  `AppId` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Cluster Name',
  `NamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Namespace Name',
  `BranchName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'branch name',
  `Rules` varchar(16000) DEFAULT '[]' COMMENT '灰度规则',
  `ReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '灰度对应的release',
  `BranchStatus` tinyint(2) DEFAULT '1' COMMENT '灰度分支状态: 0:删除分支,1:正在使用的规则 2:全量发布',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Namespace` (`AppId`,`ClusterName`,`NamespaceName`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='灰度规则表';


# Dump of table instance
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Instance`;

CREATE TABLE `Instance` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `DataCenter` varchar(64) NOT NULL DEFAULT 'default' COMMENT 'Data Center Name',
  `Ip` varchar(32) NOT NULL DEFAULT '' COMMENT 'instance ip',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_UNIQUE_KEY` (`AppId`,`ClusterName`,`Ip`,`DataCenter`),
  KEY `IX_IP` (`Ip`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='使用配置的应用实例';



# Dump of table instanceconfig
# ------------------------------------------------------------

DROP TABLE IF EXISTS `InstanceConfig`;

CREATE TABLE `InstanceConfig` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `InstanceId` int(11) unsigned DEFAULT NULL COMMENT 'Instance Id',
  `ConfigAppId` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config App Id',
  `ConfigClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config Cluster Name',
  `ConfigNamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'Config Namespace Name',
  `ReleaseKey` varchar(64) NOT NULL DEFAULT '' COMMENT '发布的Key',
  `ReleaseDeliveryTime` timestamp NULL DEFAULT NULL COMMENT '配置获取时间',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_UNIQUE_KEY` (`InstanceId`,`ConfigAppId`,`ConfigNamespaceName`),
  KEY `IX_ReleaseKey` (`ReleaseKey`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Valid_Namespace` (`ConfigAppId`,`ConfigClusterName`,`ConfigNamespaceName`,`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='应用实例的配置信息';



# Dump of table item
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Item`;

CREATE TABLE `Item` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `NamespaceId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '集群NamespaceId',
  `Key` varchar(128) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Value` longtext NOT NULL COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `LineNum` int(10) unsigned DEFAULT '0' COMMENT '行号',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_GroupId` (`NamespaceId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置项目';



# Dump of table namespace
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Namespace`;

CREATE TABLE `Namespace` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'Cluster Name',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'Namespace Name',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `AppId_ClusterName_NamespaceName` (`AppId`(191),`ClusterName`(191),`NamespaceName`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_NamespaceName` (`NamespaceName`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='命名空间';



# Dump of table namespacelock
# ------------------------------------------------------------

DROP TABLE IF EXISTS `NamespaceLock`;

CREATE TABLE `NamespaceLock` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增id',
  `NamespaceId` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '集群NamespaceId',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT 'default' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  `IsDeleted` bit(1) DEFAULT b'0' COMMENT '软删除',
  PRIMARY KEY (`Id`),
  UNIQUE KEY `IX_NamespaceId` (`NamespaceId`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='namespace的编辑锁';



# Dump of table release
# ------------------------------------------------------------

DROP TABLE IF EXISTS `Release`;

CREATE TABLE `Release` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `ReleaseKey` varchar(64) NOT NULL DEFAULT '' COMMENT '发布的Key',
  `Name` varchar(64) NOT NULL DEFAULT 'default' COMMENT '发布名字',
  `Comment` varchar(256) DEFAULT NULL COMMENT '发布说明',
  `AppId` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(500) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `Configurations` longtext NOT NULL COMMENT '发布配置',
  `IsAbandoned` bit(1) NOT NULL DEFAULT b'0' COMMENT '是否废弃',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `AppId_ClusterName_GroupName` (`AppId`(191),`ClusterName`(191),`NamespaceName`(191)),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_ReleaseKey` (`ReleaseKey`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布';


# Dump of table releasehistory
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ReleaseHistory`;

CREATE TABLE `ReleaseHistory` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `AppId` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'AppID',
  `ClusterName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'ClusterName',
  `NamespaceName` varchar(32) NOT NULL DEFAULT 'default' COMMENT 'namespaceName',
  `BranchName` varchar(32) NOT NULL DEFAULT 'default' COMMENT '发布分支名',
  `ReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '关联的Release Id',
  `PreviousReleaseId` int(11) unsigned NOT NULL DEFAULT '0' COMMENT '前一次发布的ReleaseId',
  `Operation` tinyint(3) unsigned NOT NULL DEFAULT '0' COMMENT '发布类型,0: 普通发布,1: 回滚,2: 灰度发布,3: 灰度规则更新,4: 灰度合并回主分支发布,5: 主分支发布灰度自动发布,6: 主分支回滚灰度自动发布,7: 放弃灰度',
  `OperationContext` longtext NOT NULL COMMENT '发布上下文信息',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_Namespace` (`AppId`,`ClusterName`,`NamespaceName`,`BranchName`),
  KEY `IX_ReleaseId` (`ReleaseId`),
  KEY `IX_DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布历史';


# Dump of table releasemessage
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ReleaseMessage`;

CREATE TABLE `ReleaseMessage` (
  `Id` int(11) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `Message` varchar(1024) NOT NULL DEFAULT '' COMMENT '发布的消息内容',
  `DataChange_LastTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`),
  KEY `IX_Message` (`Message`(191))
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='发布消息';



# Dump of table serverconfig
# ------------------------------------------------------------

DROP TABLE IF EXISTS `ServerConfig`;

CREATE TABLE `ServerConfig` (
  `Id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '自增Id',
  `Key` varchar(64) NOT NULL DEFAULT 'default' COMMENT '配置项Key',
  `Cluster` varchar(32) NOT NULL DEFAULT 'default' COMMENT '配置对应的集群,default为不针对特定的集群',
  `Value` varchar(2048) NOT NULL DEFAULT 'default' COMMENT '配置项值',
  `Comment` varchar(1024) DEFAULT '' COMMENT '注释',
  `IsDeleted` bit(1) NOT NULL DEFAULT b'0' COMMENT '1: deleted, 0: normal',
  `DataChange_CreatedBy` varchar(32) NOT NULL DEFAULT 'default' COMMENT '创建人邮箱前缀',
  `DataChange_CreatedTime` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `DataChange_LastModifiedBy` varchar(32) DEFAULT '' COMMENT '最后修改人邮箱前缀',
  `DataChange_LastTime` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '最后修改时间',
  PRIMARY KEY (`Id`),
  KEY `IX_Key` (`Key`),
  KEY `DataChange_LastTime` (`DataChange_LastTime`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='配置服务自身配置';

# Config
# ------------------------------------------------------------
INSERT INTO `ServerConfig` (`Key`, `Cluster`, `Value`, `Comment`)
VALUES
    ('eureka.service.url', 'default', 'http://statefulset-apollo-config-server-dev-0.service-apollo-meta-server-dev:8080/eureka/,http://statefulset-apollo-config-server-dev-1.service-apollo-meta-server-dev:8080/eureka/,http://statefulset-apollo-config-server-dev-2.service-apollo-meta-server-dev:8080/eureka/', 'Eureka服务Url,多个service以英文逗号分隔'),
    ('namespace.lock.switch', 'default', 'false', '一次发布只能有一个人修改开关'),
    ('item.key.length.limit', 'default', '128', 'item key 最大长度限制'),
    ('item.value.length.limit', 'default', '20000', 'item value最大长度限制'),
    ('config-service.cache.enabled', 'default', 'false', 'ConfigService是否开启缓存,开启后能提高性能,但是会增大内存消耗!');

/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;


修改编译脚本

[root@k8s-master home]# cd /home/apollo/scripts/
[root@k8s-master scripts]# cat build.sh
#!/bin/sh

# apollo config db info
apollo_config_db_url=jdbc:mysql://192.168.200.223:30316/ApolloConfigDB?characterEncoding=utf8
apollo_config_db_username=root
apollo_config_db_password=123456

# apollo portal db info
apollo_portal_db_url=jdbc:mysql://192.168.200.223:30316/ApolloPortalDB?characterEncoding=utf8
apollo_portal_db_username=root
apollo_portal_db_password=123456

# meta server url, different environments should have different meta server addresses
dev_meta=http://service-apollo-config-server-dev.sre:8080
test_meta=http://service-apollo-config-server-test.sre:8080
release_meta=http://service-apollo-config-server-release.sre:8080
pro_meta=http://service-apollo-config-server-prod.sre:8080
META_SERVERS_OPTS="-Ddev_meta=$dev_meta -Dfat_meta=$test_meta -Duat_meta=$release_meta -Dpro_meta=$pro_meta"

# =============== Please do not modify the following content =============== #
# go to script directory
cd "${0%/*}"

cd ..

# package config-service and admin-service
echo "==== starting to build config-service and admin-service ===="

mvn clean package -DskipTests -pl apollo-configservice,apollo-adminservice -am -Dapollo_profile=github -Dspring_datasource_url=$apollo_config_db_url -Dspring_datasource_username=$apollo_config_db_username -Dspring_datasource_password=$apollo_config_db_password

echo "==== building config-service and admin-service finished ===="

echo "==== starting to build portal ===="

mvn clean package -DskipTests -pl apollo-portal -am -Dapollo_profile=github,auth -Dspring_datasource_url=$apollo_portal_db_url -Dspring_datasource_username=$apollo_portal_db_username -Dspring_datasource_password=$apollo_portal_db_password $META_SERVERS_OPTS
echo "==== building portal finished ===="
# 编译
[root@k8s-master scripts]# ./ build.sh

获取安装包

config-service: /home/apollo/apollo-configservice/target/apollo-configservice-1.7.0-SNAPSHOT-github.zip

admin-service: /home/apollo/apollo-adminservice/target/apollo-adminservice-1.7.0-SNAPSHOT-github.zip

portal-service: /home/apollo/apollo-portal/target/apollo-portal-1.7.0-SNAPSHOT-github.zip

打包镜像

解压获取到的安装包,得到jar包

解压 apollo-portal-1.7.0-github.zip
获取 apollo-portal-1.7.0.jar, 重命名为 apollo-portal.jar, 放到 scripts/apollo-on-kubernetes/apollo-portal-server
解压 apollo-adminservice-1.7.0-github.zip
获取 apollo-adminservice-1.7.0.jar, 重命名为 apollo-adminservice.jar, 放到 scripts/apollo-on-kubernetes/apollo-admin-server
解压 apollo-configservice-1.7.0-github.zip
获取 apollo-configservice-1.7.0.jar, 重命名为 apollo-configservice.jar, 放到 scripts/apollo-on-kubernetes/apollo-config-server
以adminservice为例,目录树如下:

[root@k8s-master apollo-admin-server]# pwd
/home/apollo/scripts/apollo-on-kubernetes/apollo-admin-server
[root@k8s-master apollo-admin-server]# tree
.
├── apollo-adminservice.conf
├── apollo-adminservice.jar
├── config
│   └── app.properties
├── Dockerfile
└── scripts
    └── startup-kubernetes.sh

打包镜像

需要分别为alpine-bash-3.8-image,apollo-config-server,apollo-admin-server和apollo-portal-server构建镜像,推送到harbor

# 在 scripts/apollo-on-kubernetes/apollo-config-server 路径下
docker build -t apollo-config-server:v1.0.0 .
#分别在上述4个目录下执行构建镜像

打包完镜像上传到harbor

k8s内部署apollo

dev环境

admin

[root@k8s-master apollo-env-dev]# cat service-apollo-admin-server-dev.yaml

---
# configmap for apollo-admin-server-dev
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-admin-server-dev
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://apollo-mysql:3306/DevApolloConfigDB?characterEncoding=utf8
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-dev-0.service-apollo-meta-server-dev:8080/eureka/,http://statefulset-apollo-config-server-dev-1.service-apollo-meta-server-dev:8080/eureka/,http://statefulset-apollo-config-server-dev-2.service-apollo-meta-server-dev:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-admin-server-dev
  labels:
    app: service-apollo-admin-server-dev
spec:
  ports:
    - protocol: TCP
      port: 8090
      targetPort: 8090
      nodePort: 30003
  selector:
    app: pod-apollo-admin-server-dev
  type: NodePort
  sessionAffinity: ClientIP

---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: sre
  name: deployment-apollo-admin-server-dev
  labels:
    app: deployment-apollo-admin-server-dev
spec:
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-admin-server-dev
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-admin-server-dev
    spec:
      volumes:
        - name: volume-configmap-apollo-admin-server-dev
          configMap:
            name: configmap-apollo-admin-server-dev
            items:
              - key: application-github.properties
                path: application-github.properties

      initContainers:
        - image: ip2.axhome.com.cn/op-test/alpine-bash-3.8:v1.0.0
          name: check-service-apollo-config-server-dev
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-config-server-dev.sre:8080"]

      containers:
        - image: ip2.axhome.com.cn/op-test/apollo-admin-server:v1.0.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-admin-server-dev
          ports:
            - protocol: TCP
              containerPort: 8090

          volumeMounts:
            - name: volume-configmap-apollo-admin-server-dev
              mountPath: /apollo-admin-server/config/application-github.properties
              subPath: application-github.properties

          env:
            - name: APOLLO_ADMIN_SERVICE_NAME
              value: "service-apollo-admin-server-dev.sre"

          readinessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always

config

[root@k8s-master apollo-env-dev]# cat service-apollo-config-server-dev.yaml
---
# configmap for apollo-config-server-dev
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-config-server-dev
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://apollo-mysql:3306/DevApolloConfigDB?characterEncoding=utf8
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-dev-0.service-apollo-meta-server-dev:8080/eureka/,http://statefulset-apollo-config-server-dev-1.service-apollo-meta-server-dev:8080/eureka/,http://statefulset-apollo-config-server-dev-2.service-apollo-meta-server-dev:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-meta-server-dev
  labels:
    app: service-apollo-meta-server-dev
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
  selector:
    app: pod-apollo-config-server-dev
  type: ClusterIP
  clusterIP: None
  sessionAffinity: ClientIP

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-config-server-dev
  labels:
    app: service-apollo-config-server-dev
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
      nodePort: 30002
  selector:
    app: pod-apollo-config-server-dev
  type: NodePort
  sessionAffinity: ClientIP

---
kind: StatefulSet
apiVersion: apps/v1
metadata:
  namespace: sre
  name: statefulset-apollo-config-server-dev
  labels:
    app: statefulset-apollo-config-server-dev
spec:
  serviceName: service-apollo-meta-server-dev
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-config-server-dev
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-config-server-dev
    spec:
      volumes:
        - name: volume-configmap-apollo-config-server-dev
          configMap:
            name: configmap-apollo-config-server-dev
            items:
              - key: application-github.properties
                path: application-github.properties

      containers:
        - image: ip2.axhome.com.cn/op-test/apollo-config-server:v1.0.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-config-server-dev
          ports:
            - protocol: TCP
              containerPort: 8080

          volumeMounts:
            - name: volume-configmap-apollo-config-server-dev
              mountPath: /apollo-config-server/config/application-github.properties
              subPath: application-github.properties

          env:
            - name: APOLLO_CONFIG_SERVICE_NAME
              value: "service-apollo-config-server-dev.sre"

          readinessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds:  120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always

部署时先部署config在部署admin

[root@k8s-master apollo-env-dev]# kubectl apply -f service-apollo-config-server-dev.yaml
[root@k8s-master apollo-env-dev]# kubectl apply -f service-apollo-admin-server-dev.yaml
[root@k8s-master apollo-env-dev]# kubectl get -n sre po
NAME                                                  READY   STATUS    RESTARTS   AGE
apollo-mysql-7945c497bc-cjkkj                         1/1     Running   0          107m
deployment-apollo-admin-server-dev-7bf64d5b54-9tc7l   1/1     Running   0          4m52s
statefulset-apollo-config-server-dev-0                1/1     Running   0          7m44s

test环境

[root@k8s-master apollo-env-test]# cat service-apollo-admin-server-test.yaml

---
# configmap for apollo-admin-server-test
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-admin-server-test
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://apollo-mysql:3306/TestApolloConfigDB?characterEncoding=utf8
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-test-0.service-apollo-meta-server-test:8080/eureka/,http://statefulset-apollo-config-server-test-1.service-apollo-meta-server-test:8080/eureka/,http://statefulset-apollo-config-server-test-2.service-apollo-meta-server-test:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-admin-server-test
  labels:
    app: service-apollo-admin-server-test
spec:
  ports:
    - protocol: TCP
      port: 8090
      targetPort: 8090
      nodePort: 30005
  selector:
    app: pod-apollo-admin-server-test
  type: NodePort
  sessionAffinity: ClientIP

---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: sre
  name: deployment-apollo-admin-server-test
  labels:
    app: deployment-apollo-admin-server-test
spec:
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-admin-server-test
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-admin-server-test
    spec:
      volumes:
        - name: volume-configmap-apollo-admin-server-test
          configMap:
            name: configmap-apollo-admin-server-test
            items:
              - key: application-github.properties
                path: application-github.properties

      initContainers:
        - image: ip2.axhome.com.cn/op-test/alpine-bash-3.8:v1.0.0
          name: check-service-apollo-config-server-test
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-config-server-test.sre:8080"]

      containers:
        - image: ip2.axhome.com.cn/op-test/apollo-admin-server:v1.0.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-admin-server-test
          ports:
            - protocol: TCP
              containerPort: 8090

          volumeMounts:
            - name: volume-configmap-apollo-admin-server-test
              mountPath: /apollo-admin-server/config/application-github.properties
              subPath: application-github.properties

          env:
            - name: APOLLO_ADMIN_SERVICE_NAME
              value: "service-apollo-admin-server-test.sre"

          readinessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always
[root@k8s-master apollo-env-test]# cat service-apollo-config-server-test.yaml

---
# configmap for apollo-config-server-test
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-config-server-test
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://apollo-mysql:3306/TestApolloConfigDB?characterEncoding=utf8
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-test-0.service-apollo-meta-server-test:8080/eureka/,http://statefulset-apollo-config-server-test-1.service-apollo-meta-server-test:8080/eureka/,http://statefulset-apollo-config-server-test-2.service-apollo-meta-server-test:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-meta-server-test
  labels:
    app: service-apollo-meta-server-test
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
  selector:
    app: pod-apollo-config-server-test
  type: ClusterIP
  clusterIP: None
  sessionAffinity: ClientIP

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-config-server-test
  labels:
    app: service-apollo-config-server-test
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
      nodePort: 30004
  selector:
    app: pod-apollo-config-server-test
  type: NodePort
  sessionAffinity: ClientIP

---
kind: StatefulSet
apiVersion: apps/v1
metadata:
  namespace: sre
  name: statefulset-apollo-config-server-test
  labels:
    app: statefulset-apollo-config-server-test
spec:
  serviceName: service-apollo-meta-server-test
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-config-server-test
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-config-server-test
    spec:
      volumes:
        - name: volume-configmap-apollo-config-server-test
          configMap:
            name: configmap-apollo-config-server-test
            items:
              - key: application-github.properties
                path: application-github.properties

      containers:
        - image: ip2.axhome.com.cn/op-test/apollo-config-server:v1.0.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-config-server-test
          ports:
            - protocol: TCP
              containerPort: 8080

          volumeMounts:
            - name: volume-configmap-apollo-config-server-test
              mountPath: /apollo-config-server/config/application-github.properties
              subPath: application-github.properties

          env:
            - name: APOLLO_CONFIG_SERVICE_NAME
              value: "service-apollo-config-server-test.sre"

          readinessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds:  120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always

部署时先部署config在部署admin

release环境

[root@k8s-master apollo-env-release]# cat service-apollo-admin-server-release.yaml

---
# configmap for apollo-admin-server-release
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-admin-server-release
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://apollo-mysql:3306/ReleaseApolloConfigDB?characterEncoding=utf8
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-release-0.service-apollo-meta-server-release:8080/eureka/,http://statefulset-apollo-config-server-release-1.service-apollo-meta-server-release:8080/eureka/,http://statefulset-apollo-config-server-release-2.service-apollo-meta-server-release:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-admin-server-release
  labels:
    app: service-apollo-admin-server-release
spec:
  ports:
    - protocol: TCP
      port: 8090
      targetPort: 8090
      nodePort: 30007
  selector:
    app: pod-apollo-admin-server-release
  type: NodePort
  sessionAffinity: ClientIP

---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: sre
  name: deployment-apollo-admin-server-release
  labels:
    app: deployment-apollo-admin-server-release
spec:
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-admin-server-release
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-admin-server-release
    spec:
      volumes:
        - name: volume-configmap-apollo-admin-server-release
          configMap:
            name: configmap-apollo-admin-server-release
            items:
              - key: application-github.properties
                path: application-github.properties

      initContainers:
        - image: ip2.axhome.com.cn/op-test/alpine-bash-3.8:v1.0.0
          name: check-service-apollo-config-server-release
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-config-server-release.sre:8080"]

      containers:
        - image: ip2.axhome.com.cn/op-test/apollo-admin-server:v1.0.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-admin-server-release
          ports:
            - protocol: TCP
              containerPort: 8090

          volumeMounts:
            - name: volume-configmap-apollo-admin-server-release
              mountPath: /apollo-admin-server/config/application-github.properties
              subPath: application-github.properties

          env:
            - name: APOLLO_ADMIN_SERVICE_NAME
              value: "service-apollo-admin-server-release.sre"

          readinessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always
[root@k8s-master apollo-env-release]# cat service-apollo-config-server-release.yaml

---
# configmap for apollo-config-server-release
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-config-server-release
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://apollo-mysql:3306/ReleaseApolloConfigDB?characterEncoding=utf8
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-release-0.service-apollo-meta-server-release:8080/eureka/,http://statefulset-apollo-config-server-release-1.service-apollo-meta-server-release:8080/eureka/,http://statefulset-apollo-config-server-release-2.service-apollo-meta-server-release:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-meta-server-release
  labels:
    app: service-apollo-meta-server-release
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
  selector:
    app: pod-apollo-config-server-release
  type: ClusterIP
  clusterIP: None
  sessionAffinity: ClientIP

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-config-server-release
  labels:
    app: service-apollo-config-server-release
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
      nodePort: 30006
  selector:
    app: pod-apollo-config-server-release
  type: NodePort
  sessionAffinity: ClientIP

---
kind: StatefulSet
apiVersion: apps/v1
metadata:
  namespace: sre
  name: statefulset-apollo-config-server-release
  labels:
    app: statefulset-apollo-config-server-release
spec:
  serviceName: service-apollo-meta-server-release
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-config-server-release
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-config-server-release
    spec:
      volumes:
        - name: volume-configmap-apollo-config-server-release
          configMap:
            name: configmap-apollo-config-server-release
            items:
              - key: application-github.properties
                path: application-github.properties

      containers:
        - image: ip2.axhome.com.cn/op-test/apollo-config-server:v1.0.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-config-server-release
          ports:
            - protocol: TCP
              containerPort: 8080

          volumeMounts:
            - name: volume-configmap-apollo-config-server-release
              mountPath: /apollo-config-server/config/application-github.properties
              subPath: application-github.properties

          env:
            - name: APOLLO_CONFIG_SERVICE_NAME
              value: "service-apollo-config-server-release.sre"

          readinessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds:  120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always

部署时先部署config在部署admin

prod环境

[root@k8s-master apollo-env-prod]# cat service-apollo-admin-server-prod.yaml

---
# configmap for apollo-admin-server-prod
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-admin-server-prod
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://apollo-mysql:3306/ProApolloConfigDB?characterEncoding=utf8
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-prod-0.service-apollo-meta-server-prod:8080/eureka/,http://statefulset-apollo-config-server-prod-1.service-apollo-meta-server-prod:8080/eureka/,http://statefulset-apollo-config-server-prod-2.service-apollo-meta-server-prod:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-admin-server-prod
  labels:
    app: service-apollo-admin-server-prod
spec:
  ports:
    - protocol: TCP
      port: 8090
      targetPort: 8090
      nodePort: 30011
  selector:
    app: pod-apollo-admin-server-prod
  type: NodePort
  sessionAffinity: ClientIP

---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: sre
  name: deployment-apollo-admin-server-prod
  labels:
    app: deployment-apollo-admin-server-prod
spec:
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-admin-server-prod
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-admin-server-prod
    spec:
      volumes:
        - name: volume-configmap-apollo-admin-server-prod
          configMap:
            name: configmap-apollo-admin-server-prod
            items:
              - key: application-github.properties
                path: application-github.properties

      initContainers:
        - image: ip2.axhome.com.cn/op-test/alpine-bash-3.8:v1.0.0
          name: check-service-apollo-config-server-prod
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 50 --retry-delay 1 --retry-max-time 120 service-apollo-config-server-prod.sre:8080"]

      containers:
        - image: ip2.axhome.com.cn/op-test/apollo-admin-server:v1.0.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-admin-server-prod
          ports:
            - protocol: TCP
              containerPort: 8090

          volumeMounts:
            - name: volume-configmap-apollo-admin-server-prod
              mountPath: /apollo-admin-server/config/application-github.properties
              subPath: application-github.properties

          env:
            - name: APOLLO_ADMIN_SERVICE_NAME
              value: "service-apollo-admin-server-prod.sre"

          readinessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8090
            initialDelaySeconds: 120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always
[root@k8s-master apollo-env-prod]# cat service-apollo-config-server-prod.yaml

---
# configmap for apollo-config-server-prod
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-config-server-prod
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://apollo-mysql:3306/ProApolloConfigDB?characterEncoding=utf8
    spring.datasource.username = root
    spring.datasource.password = 123456
    eureka.service.url = http://statefulset-apollo-config-server-prod-0.service-apollo-meta-server-prod:8080/eureka/,http://statefulset-apollo-config-server-prod-1.service-apollo-meta-server-prod:8080/eureka/,http://statefulset-apollo-config-server-prod-2.service-apollo-meta-server-prod:8080/eureka/

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-meta-server-prod
  labels:
    app: service-apollo-meta-server-prod
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
  selector:
    app: pod-apollo-config-server-prod
  type: ClusterIP
  clusterIP: None
  sessionAffinity: ClientIP

---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-config-server-prod
  labels:
    app: service-apollo-config-server-prod
spec:
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
      nodePort: 30009
  selector:
    app: pod-apollo-config-server-prod
  type: NodePort
  sessionAffinity: ClientIP

---
kind: StatefulSet
apiVersion: apps/v1
metadata:
  namespace: sre
  name: statefulset-apollo-config-server-prod
  labels:
    app: statefulset-apollo-config-server-prod
spec:
  serviceName: service-apollo-meta-server-prod
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-config-server-prod
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-config-server-prod
    spec:
      volumes:
        - name: volume-configmap-apollo-config-server-prod
          configMap:
            name: configmap-apollo-config-server-prod
            items:
              - key: application-github.properties
                path: application-github.properties

      containers:
        - image: ip2.axhome.com.cn/op-test/apollo-config-server:v1.0.0
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-config-server-prod
          ports:
            - protocol: TCP
              containerPort: 8080

          volumeMounts:
            - name: volume-configmap-apollo-config-server-prod
              mountPath: /apollo-config-server/config/application-github.properties
              subPath: application-github.properties
          env:
            - name: APOLLO_CONFIG_SERVICE_NAME
              value: "service-apollo-config-server-prod.sre"

          readinessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8080
            initialDelaySeconds: 120
            periodSeconds: 10

      dnsPolicy: ClusterFirst
      restartPolicy: Always

部署时先部署config在部署admin

部署Apollo Portal

[root@k8s-master kubernetes]# pwd
/home/apollo/scripts/apollo-on-kubernetes/kubernetes
[root@k8s-master kubernetes]# cat service-apollo-portal-server.yaml
---
# configmap for apollo-portal-server
kind: ConfigMap
apiVersion: v1
metadata:
  namespace: sre
  name: configmap-apollo-portal-server
data:
  application-github.properties: |
    spring.datasource.url = jdbc:mysql://apollo-mysql:3306/ApolloPortalDB?characterEncoding=utf8
    # mysql username
    spring.datasource.username = root
    # mysql password
    spring.datasource.password = 123456
  apollo-env.properties: |
    dev.meta=http://192.168.200.223:30002
    test.meta=http://192.168.200.223:30004
    release.meta=http://192.168.200.223:30006
    prod.meta=http://192.168.200.223:30009
---
kind: Service
apiVersion: v1
metadata:
  namespace: sre
  name: service-apollo-portal-server
  labels:
    app: service-apollo-portal-server
spec:
  ports:
    - protocol: TCP
      port: 8070
      targetPort: 8070
      nodePort: 30012
  selector:
    app: pod-apollo-portal-server
  type: NodePort
  # portal session 保持
  sessionAffinity: ClientIP

---
kind: Deployment
apiVersion: apps/v1
metadata:
  namespace: sre
  name: deployment-apollo-portal-server
  labels:
    app: deployment-apollo-portal-server
spec:
  # 3 个实例
  replicas: 1
  selector:
    matchLabels:
      app: pod-apollo-portal-server
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: pod-apollo-portal-server
    spec:
      volumes:
        - name: volume-configmap-apollo-portal-server
          configMap:
            name: configmap-apollo-portal-server
            items:
              - key: application-github.properties
                path: application-github.properties
              - key: apollo-env.properties
                path: apollo-env.properties

      initContainers:
        # 确保 admin-service 正常提供服务
        - image: ip2.axhome.com.cn/op-test/alpine-bash-3.8:v1.0.0
          name: check-service-apollo-admin-server-dev
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-admin-server-dev.sre:8090"]
        - image: ip2.axhome.com.cn/op-test/alpine-bash-3.8:v1.0.0
          name: check-service-apollo-admin-server-test
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-admin-server-test.sre:8090"]
        - image: ip2.axhome.com.cn/op-test/alpine-bash-3.8:v1.0.0
          name: check-service-apollo-admin-server-release
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-admin-server-release.sre:8090"]
        - image: ip2.axhome.com.cn/op-test/alpine-bash-3.8:v1.0.0
          name: check-service-apollo-admin-server-prod
          command: ['bash', '-c', "curl --connect-timeout 2 --max-time 5 --retry 60 --retry-delay 1 --retry-max-time 120 service-apollo-admin-server-prod.sre:8090"]

      containers:
        - image: ip2.axhome.com.cn/op-test/apollo-portal-server:v1.0.0    # 更改为你的 docker registry 下的 image
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          name: container-apollo-portal-server
          ports:
            - protocol: TCP
              containerPort: 8070

          volumeMounts:
            - name: volume-configmap-apollo-portal-server
              mountPath: /apollo-portal-server/config/application-github.properties
              subPath: application-github.properties
            - name: volume-configmap-apollo-portal-server
              mountPath: /apollo-portal-server/config/apollo-env.properties
              subPath: apollo-env.properties

          env:
            - name: APOLLO_PORTAL_SERVICE_NAME
              value: "service-apollo-portal-server.sre"

          readinessProbe:
            tcpSocket:
              port: 8070
            initialDelaySeconds: 10
            periodSeconds: 5

          livenessProbe:
            tcpSocket:
              port: 8070
            # 120s 内, server 未启动则重启 container
            initialDelaySeconds: 120
            periodSeconds: 15

      dnsPolicy: ClusterFirst
      restartPolicy: Always

查看部署状态

[root@k8s-master kubernetes]# kubectl get -n sre po
NAME                                                      READY   STATUS    RESTARTS   AGE
apollo-mysql-7945c497bc-cjkkj                             1/1     Running   0          4h24m
deployment-apollo-admin-server-dev-7bf64d5b54-9tc7l       1/1     Running   0          162m
deployment-apollo-admin-server-prod-6dd7759bd5-lhbrr      1/1     Running   0          128m
deployment-apollo-admin-server-release-57bf448646-dmhjs   1/1     Running   0          139m
deployment-apollo-admin-server-test-59b594ff64-rm7m6      1/1     Running   0          134m
deployment-apollo-portal-server-6f6875d987-xpfwk          1/1     Running   0          9m33s
statefulset-apollo-config-server-dev-0                    1/1     Running   0          164m
statefulset-apollo-config-server-prod-0                   1/1     Running   0          128m
statefulset-apollo-config-server-release-0                1/1     Running   0          140m
statefulset-apollo-config-server-test-0                   1/1     Running   0          135m

访问NodeIP:30012
默认用户名密码:
用户名:apollo
密 码:admin

参数调整

管理员工具-系统参数:
apollo.portal.envs 为 dev, test, release, pro
configView.memberOnly.envs 为 pro, 进行环境权限控制

点击系统信息,4个环境连接检查

如需分布式部署,线上部署prod,portal与prod环境部署在同一地方,未解决eureka连接,需要修改eureka地址,参考如下
https://github.com/ctripcorp/apollo/wiki/%E9%83%A8%E7%BD%B2&%E5%BC%80%E5%8F%91%E9%81%87%E5%88%B0%E7%9A%84%E5%B8%B8%E8%A7%81%E9%97%AE%E9%A2%98#4-portal%E5%A6%82%E4%BD%95%E5%A2%9E%E5%8A%A0%E7%8E%AF%E5%A2%83
