系统环境

  • Docker 版本:19.03.8
  • kubernetes 版本:1.20.0
  • ingress-nginx版本:0.48.1

Ingress 及 Ingress Controller 简介

Ingress:是k8s 资源对象,用于对外暴露服务,该资源对象定义了不同主机名(域名)及 URL 和对应后端 Service(k8s Service)的绑定,根据不同的路径路由 http 和 https 流量

Ingress Contoller:是一个pod服务,封装了一个Web前端负载均衡器,同时在其基础上实现了动态感知Ingress 并根据Ingress的定义动态生成前端web负载均衡器的配置文件,比如Nginx Ingress Controller本质上就是一个Nginx,只不过它能根据 Ingress 资源的定义动态生成 Nginx 的配置文件,然后动态 Reload

Ingress Controller工作架构


部署方案

  • Deployment + LB:较为简单通用,但在大规模和高并发场景存在性能问题,如果对性能要求低,可以考虑使用此方案
  • Daemonset + HostNetwork + LB:使用 hostNetwork 性能好,但需要手动维护 LB 和 Nginx Ingress 节点,也无法实现自动扩缩容(本文采用此方法)

ingress-nginx部署

创建NameSpace

[root@k8s01 ingress-nginx]# vim ns.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx

创建ServiceAccount

[root@k8s01 ingress-nginx]# vim serviceAccount.yaml
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
  name: ingress-nginx
  namespace: ingress-nginx
automountServiceAccountToken: true

创建ClusterRole与ClusterRoleBinding

[root@k8s01 ingress-nginx]# vim rbac.yaml
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
  name: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
    verbs:
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
  name: ingress-nginx
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - configmaps
      - pods
      - secrets
      - endpoints
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io   # k8s 1.14+
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - configmaps
    resourceNames:
      - ingress-controller-leader-nginx
    verbs:
      - get
      - update
  - apiGroups:
      - ''
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx

创建secret

使用自己的证书文件创建 secret

[root@k8s01 ingress-nginx]# kubectl create secret tls default-server-secret --cert=tls.crt--key=tls.key -n ingress-nginx
#path为证书路径
secret/default-server-secret created

也可以使用 nginx-ingress 自带的证书创建 sescret

[root@k8s-master]# vim default-server-secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: default-server-secret
  namespace: ingress-nginx
type: Opaque
data:
  tls.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN2akNDQWFZQ0NRREFPRjl0THNhWFhEQU5CZ2txaGtpRzl3MEJBUXNGQURBaE1SOHdIUVlEVlFRRERCWk8KUjBsT1dFbHVaM0psYzNORGIyNTBjbTlzYkdWeU1CNFhEVEU0TURreE1qRTRNRE16TlZvWERUSXpNRGt4TVRFNApNRE16TlZvd0lURWZNQjBHQTFVRUF3d1dUa2RKVGxoSmJtZHlaWE56UTI5dWRISnZiR3hsY2pDQ0FTSXdEUVlKCktvWklodmNOQVFFQkJRQURnZ0VQQURDQ0FRb0NnZ0VCQUwvN2hIUEtFWGRMdjNyaUM3QlBrMTNpWkt5eTlyQ08KR2xZUXYyK2EzUDF0azIrS3YwVGF5aGRCbDRrcnNUcTZzZm8vWUk1Y2Vhbkw4WGM3U1pyQkVRYm9EN2REbWs1Qgo4eDZLS2xHWU5IWlg0Rm5UZ0VPaStlM2ptTFFxRlBSY1kzVnNPazFFeUZBL0JnWlJVbkNHZUtGeERSN0tQdGhyCmtqSXVuektURXUyaDU4Tlp0S21ScUJHdDEwcTNRYzhZT3ExM2FnbmovUWRjc0ZYYTJnMjB1K1lYZDdoZ3krZksKWk4vVUkxQUQ0YzZyM1lma1ZWUmVHd1lxQVp1WXN2V0RKbW1GNWRwdEMzN011cDBPRUxVTExSakZJOTZXNXIwSAo1TmdPc25NWFJNV1hYVlpiNWRxT3R0SmRtS3FhZ25TZ1JQQVpQN2MwQjFQU2FqYzZjNGZRVXpNQ0F3RUFBVEFOCkJna3Foa2lHOXcwQkFRc0ZBQU9DQVFFQWpLb2tRdGRPcEsrTzhibWVPc3lySmdJSXJycVFVY2ZOUitjb0hZVUoKdGhrYnhITFMzR3VBTWI5dm15VExPY2xxeC9aYzJPblEwMEJCLzlTb0swcitFZ1U2UlVrRWtWcitTTFA3NTdUWgozZWI4dmdPdEduMS9ienM3bzNBaS9kclkrcUI5Q2k1S3lPc3FHTG1US2xFaUtOYkcyR1ZyTWxjS0ZYQU80YTY3Cklnc1hzYktNbTQwV1U3cG9mcGltU1ZmaXFSdkV5YmN3N0NYODF6cFErUyt1eHRYK2VBZ3V0NHh3VlI5d2IyVXYKelhuZk9HbWhWNThDd1dIQnNKa0kxNXhaa2VUWXdSN0diaEFMSkZUUkk3dkhvQXprTWIzbjAxQjQyWjNrN3RXNQpJUDFmTlpIOFUvOWxiUHNoT21FRFZkdjF5ZytVRVJxbStGSis2R0oxeFJGcGZnPT0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
  tls.key: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcEFJQkFBS0NBUUVBdi91RWM4b1JkMHUvZXVJTHNFK1RYZUprckxMMnNJNGFWaEMvYjVyYy9XMlRiNHEvClJOcktGMEdYaVN1eE9ycXgrajlnamx4NXFjdnhkenRKbXNFUkJ1Z1B0ME9hVGtIekhvb3FVWmcwZGxmZ1dkT0EKUTZMNTdlT1l0Q29VOUZ4amRXdzZUVVRJVUQ4R0JsRlNjSVo0b1hFTkhzbysyR3VTTWk2Zk1wTVM3YUhudzFtMApxWkdvRWEzWFNyZEJ6eGc2clhkcUNlUDlCMXl3VmRyYURiUzc1aGQzdUdETDU4cGszOVFqVUFQaHpxdmRoK1JWClZGNGJCaW9CbTVpeTlZTW1hWVhsMm0wTGZzeTZuUTRRdFFzdEdNVWozcGJtdlFmazJBNnljeGRFeFpkZFZsdmwKMm82MjBsMllxcHFDZEtCRThCay90elFIVTlKcU56cHpoOUJUTXdJREFRQUJBb0lCQVFDZklHbXowOHhRVmorNwpLZnZJUXQwQ0YzR2MxNld6eDhVNml4MHg4Mm15d1kxUUNlL3BzWE9LZlRxT1h1SENyUlp5TnUvZ2IvUUQ4bUFOCmxOMjRZTWl0TWRJODg5TEZoTkp3QU5OODJDeTczckM5bzVvUDlkazAvYzRIbjAzSkVYNzZ5QjgzQm9rR1FvYksKMjhMNk0rdHUzUmFqNjd6Vmc2d2szaEhrU0pXSzBwV1YrSjdrUkRWYmhDYUZhNk5nMUZNRWxhTlozVDhhUUtyQgpDUDNDeEFTdjYxWTk5TEI4KzNXWVFIK3NYaTVGM01pYVNBZ1BkQUk3WEh1dXFET1lvMU5PL0JoSGt1aVg2QnRtCnorNTZud2pZMy8yUytSRmNBc3JMTnIwMDJZZi9oY0IraVlDNzVWYmcydVd6WTY3TWdOTGQ5VW9RU3BDRkYrVm4KM0cyUnhybnhBb0dCQU40U3M0ZVlPU2huMVpQQjdhTUZsY0k2RHR2S2ErTGZTTXFyY2pOZjJlSEpZNnhubmxKdgpGenpGL2RiVWVTbWxSekR0WkdlcXZXaHFISy9iTjIyeWJhOU1WMDlRQ0JFTk5jNmtWajJTVHpUWkJVbEx4QzYrCk93Z0wyZHhKendWelU0VC84ajdHalRUN05BZVpFS2FvRHFyRG5BYWkyaW5oZU1JVWZHRXFGKzJyQW9HQkFOMVAKK0tZL0lsS3RWRzRKSklQNzBjUis3RmpyeXJpY05iWCtQVzUvOXFHaWxnY2grZ3l4b25BWlBpd2NpeDN3QVpGdwpaZC96ZFB2aTBkWEppc1BSZjRMazg5b2pCUmpiRmRmc2l5UmJYbyt3TFU4NUhRU2NGMnN5aUFPaTVBRHdVU0FkCm45YWFweUNweEFkREtERHdObit3ZFhtaTZ0OHRpSFRkK3RoVDhkaVpBb0dCQUt6Wis1bG9OOTBtYlF4VVh5YUwKMjFSUm9tMGJjcndsTmVCaWNFSmlzaEhYa2xpSVVxZ3hSZklNM2hhUVRUcklKZENFaHFsV01aV0xPb2I2NTNyZgo3aFlMSXM1ZUtka3o0aFRVdnpldm9TMHVXcm9CV2xOVHlGanIrSWhKZnZUc0hpOGdsU3FkbXgySkJhZUFVWUNXCndNdlQ4NmNLclNyNkQrZG8wS05FZzFsL0FvR0FlMkFVdHVFbFNqLzBmRzgrV3hHc1RFV1JqclRNUzRSUjhRWXQKeXdjdFA4aDZxTGxKUTRCWGxQU05rMXZLTmtOUkxIb2pZT2pCQTViYjhibXNVU1BlV09NNENoaFJ4QnlHbmR2eAphYkJDRkFwY0IvbEg4d1R0alVZYlN5T294ZGt5OEp0ek90ajJhS0FiZHd6NlArWDZDODhjZmxYVFo5MWpYL3RMCjF3TmRKS2tDZ1lCbyt0UzB5TzJ2SWFmK2UwSkN5TGhzVDQ5cTN3Zis2QWVqWGx2WDJ1VnRYejN5QTZnbXo5aCsKcDNlK2JMRUxwb3B0WFhNdUFRR0xhUkcrYlNNcjR5dERYbE5ZSndUeThXczNKY3dlSTdqZVp2b0ZpbmNvVlVIMwphdmxoTUVCRGYxSjltSDB5cDBwWUNaS2ROdHNvZEZtQktzVEtQMjJhTmtsVVhCS3gyZzR6cFE9PQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=

创建ConfigMap

[root@k8s01 ingress-nginx]# vim cm.yaml
---
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
  name: ingress-nginx-controller
  namespace: ingress-nginx
data:
  # 把真实IP地址传给后端
  compute-full-forwarded-for: "true"
  forwarded-for-header: "X-Forwarded-For"
  use-forwarded-headers: "true"
  # 关闭版本显示
  server-tokens: "false"
  # 客户端请求头的缓冲区大小
  client-header-buffer-size: "512k"
  # 设置用于读取大型客户端请求标头的最大值number和size缓冲区
  large-client-header-buffers: "4 512k"
  # 读取客户端请求body的缓冲区大小
  client-body-buffer-size: "128k"
  # 代理缓冲区大小
  proxy-buffer-size: "256k"
  # 代理body大小
  proxy-body-size: "50m"
  # 服务器名称哈希大小
  server-name-hash-bucket-size: "128"
  # map哈希大小
  map-hash-bucket-size: "128"
  # SSL加密套件
  ssl-ciphers: "ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-DSS-AES128-GCM-SHA256:kEDH+AESGCM:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA:ECDHE-ECDSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-DSS-AES128-SHA256:DHE-RSA-AES256-SHA256:DHE-DSS-AES256-SHA:DHE-RSA-AES256-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:AES:CAMELLIA:DES-CBC3-SHA:!aNULL:!eNULL:!EXPORT:!DES:!RC4:!MD5:!PSK:!aECDH:!EDH-DSS-DES-CBC3-SHA:!EDH-RSA-DES-CBC3-SHA:!KRB5-DES-CBC3-SHA"
  # ssl 协议
  ssl-protocols: "TLSv1 TLSv1.1 TLSv1.2"
  access-log-path: /var/log/nginx/access.log
  log-format-escape-json: "true"
  log-format-upstream: '{"timestamp": "$time_iso8601", "requestID": "$req_id", "proxyUpstreamName":
    "$proxy_upstream_name","host": "$host","body_bytes_sent": "$body_bytes_sent","proxyAlternativeUpstreamName": "$proxy_alternative_upstream_name","upstreamStatus":
    "$upstream_status", "geoip_country_code": "$geoip_country_code","upstreamAddr": "$upstream_addr","request_time":
    "$request_time","httpRequest":{"requestMethod": "$request_method", "requestUrl":
    "$request_uri", "status": $status,"requestSize": "$request_length", "responseSize":
    "$upstream_response_length", "userAgent": "$http_user_agent", "remoteIp": "$remote_addr",
    "referer": "$http_referer", "latency": "$upstream_response_time", "protocol":"$server_protocol"}}'

创建DaemonSet


[root@k8s01 ingress-nginx]# vim nginx-ds.yaml
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/instance: ingress-nginx
  revisionHistoryLimit: 10
  minReadySeconds: 0
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
    spec:
      dnsPolicy: ClusterFirst
      hostNetwork: true
      containers:
        - name: controller
          image: registry.cn-hangzhou.aliyuncs.com/kubernetes-fan/ingress-nginx:v0.48.1
          imagePullPolicy: IfNotPresent
          lifecycle:
            preStop:
              exec:
                command:
                  - /wait-shutdown
          args:
            - /nginx-ingress-controller
            - --election-id=ingress-controller-leader
            - --ingress-class=nginx
            - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
            - --validating-webhook=:8443
            - --validating-webhook-certificate=/usr/local/certificates/cert
            - --validating-webhook-key=/usr/local/certificates/key
            - --annotations-prefix=nginx.ingress.kubernetes.io
            - --default-ssl-certificate=ingress-nginx/default-server-secret
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            runAsUser: 101
            allowPrivilegeEscalation: true
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
            - name: LD_PRELOAD
              value: /usr/local/lib/libmimalloc.so
          livenessProbe:
            failureThreshold: 5
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          ports:
            - name: http
              containerPort: 80
              protocol: TCP
            - name: https
              containerPort: 443
              protocol: TCP
            - name: webhook
              containerPort: 8443
              protocol: TCP
          volumeMounts:
            - name: webhook-cert
              mountPath: /usr/local/certificates/
              readOnly: true
          resources:
            requests:
              cpu: 100m
              memory: 90Mi
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
        - name: webhook-cert
          secret:
            secretName: ingress-nginx-admission
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  type: ClusterIP
  ports:
    - name: https-webhook
      port: 443
      targetPort: webhook
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
---
apiVersion: v1
kind: Service
metadata:
  annotations:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  type: ClusterIP
  ports:
    - name: http
      port: 80
      protocol: TCP
      targetPort: http
    - name: https
      port: 443
      protocol: TCP
      targetPort: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx

创建Job初始化配置

[root@k8s01 ingress-nginx]# vim job-init.yaml
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
  name: ingress-nginx-admission
webhooks:
  - name: validate.nginx.ingress.kubernetes.io
    matchPolicy: Equivalent
    rules:
      - apiGroups:
          - networking.k8s.io
        apiVersions:
          - v1beta1
        operations:
          - CREATE
          - UPDATE
        resources:
          - ingresses
    failurePolicy: Fail
    sideEffects: None
    admissionReviewVersions:
      - v1
      - v1beta1
    clientConfig:
      service:
        namespace: ingress-nginx
        name: ingress-nginx-controller-admission
        path: /networking/v1beta1/ingresses
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
rules:
  - apiGroups:
      - admissionregistration.k8s.io
    resources:
      - validatingwebhookconfigurations
    verbs:
      - get
      - update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - secrets
    verbs:
      - get
      - create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
spec:
  template:
    metadata:
      name: ingress-nginx-admission-create
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
    spec:
      containers:
        - name: create
          image: docker.io/jettech/kube-webhook-certgen:v1.5.1
          imagePullPolicy: IfNotPresent
          args:
            - create
            - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
            - --namespace=$(POD_NAMESPACE)
            - --secret-name=ingress-nginx-admission
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
---
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
spec:
  template:
    metadata:
      name: ingress-nginx-admission-patch
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
    spec:
      containers:
        - name: patch
          image: docker.io/jettech/kube-webhook-certgen:v1.5.1
          imagePullPolicy: IfNotPresent
          args:
            - patch
            - --webhook-name=ingress-nginx-admission
            - --namespace=$(POD_NAMESPACE)
            - --patch-mutating=false
            - --secret-name=ingress-nginx-admission
            - --patch-failure-policy=Fail
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000

部署并查看pod

[root@k8s01 ingress-nginx]# kubectl apply -f ns.yaml
namespace/ingress-nginx created

[root@k8s01 ingress-nginx]# kubectl apply -f rbac.yaml
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created

[root@k8s01 ingress-nginx]# kubectl apply -f serviceAccount.yaml
serviceaccount/ingress-nginx created

[root@k8s01 ingress-nginx]# kubectl create secret tls default-server-secret --cert=tls.crt --key=tls.key -n ingress-nginx
secret/default-server-secret created

[root@k8s01 ingress-nginx]# kubectl apply -f cm.yaml
configmap/ingress-nginx-controller created

[root@k8s01 ingress-nginx]# kubectl apply -f job-init.yaml
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created
serviceaccount/ingress-nginx-admission created
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
role.rbac.authorization.k8s.io/ingress-nginx-admission created
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
job.batch/ingress-nginx-admission-create created
job.batch/ingress-nginx-admission-patch created

[root@k8s01 ingress-nginx]# kubectl apply -f nginx-ds.yaml
daemonset.apps/ingress-nginx-controller created
service/ingress-nginx-controller-admission created
service/ingress-nginx-controller created

[root@k8s01 ingress-nginx]# kubectl get -n ingress-nginx po
NAME                                   READY   STATUS      RESTARTS   AGE
ingress-nginx-admission-create-jl7d7   0/1     Completed   0          2m27s
ingress-nginx-admission-patch-7rkxq    0/1     Completed   2          2m27s
ingress-nginx-controller-4k7bc         1/1     Running     0          3m57s
ingress-nginx-controller-5s82k         1/1     Running     0          3m57s
ingress-nginx-controller-ptdct         1/1     Running     0          3m57s
[root@k8s01 ingress-nginx]# kubectl get -n ingress-nginx svc
NAME                                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
ingress-nginx-controller             ClusterIP   10.107.37.102   <none>        80/TCP,443/TCP   3m59s
ingress-nginx-controller-admission   ClusterIP   10.100.76.152   <none>        443/TCP          3m59s

测试

nginx-ingress 安装成功后,我们可以通过一个简单的示例来测试下:(demo.yaml)

[root@k8s01 ingress-nginx]# vim demo.yaml
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-nginx
  namespace: ingress-nginx
  labels:
    app: my-nginx
spec:
  replicas: 2
  selector:
    matchLabels:
      app: my-nginx
  template:
    metadata:
      labels:
        app: my-nginx
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - containerPort: 80
---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: my-nginx-svc
  name: my-nginx-svc
  namespace: ingress-nginx
spec:
  ports:
    - port: 80
      targetPort: 80
  selector:
    app: my-nginx
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: test-ing
  namespace: ingress-nginx
  annotations:
    kubernetes.io/ingress.class: "nginx"
    nginx.ingress.kubernetes.io/affinity: "cookie"
    nginx.ingress.kubernetes.io/force-ssl-redirect: "true"
    nginx.ingress.kubernetes.io/proxy-send-timeout: "3600"
    nginx.ingress.kubernetes.io/proxy-read-timeout: "3600"
    nginx.ingress.kubernetes.io/proxy-connect-timeout: "3600"
spec:
  tls:
  - hosts:
    - nginx.demo.com
    secretName: default-server-secret
  rules:
  - host: nginx.demo.com
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: my-nginx-svc
            port:
              number: 80

[root@k8s01 ingress-nginx]# kubectl apply -f demo.yaml
deployment.apps/my-nginx created
service/my-nginx-svc created
ingress.networking.k8s.io/test-ing created

注意: Ingress 资源对象中添加了一个annotations:kubernetes.io/ingress.class: “nginx”,这就是指定让这个 Ingress 通过 nginx-ingress 来处理

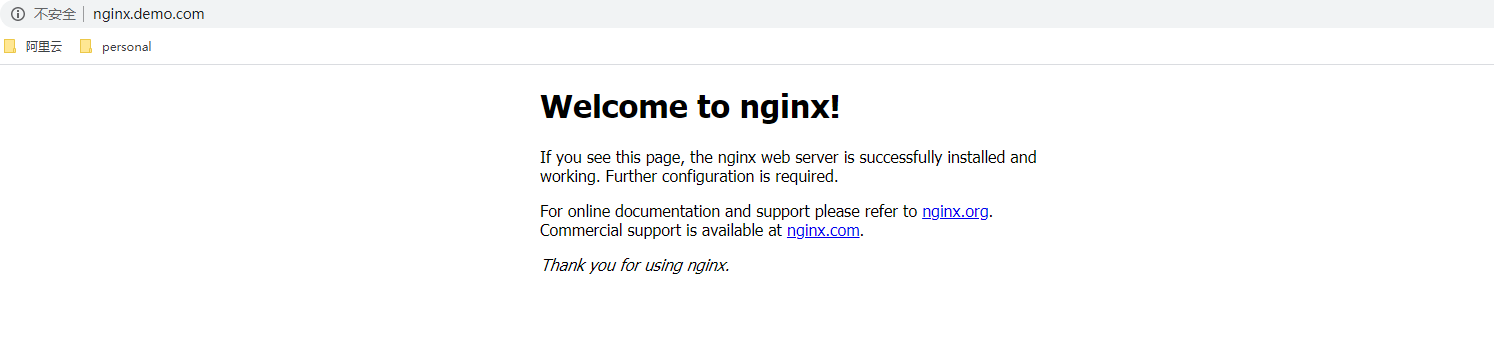

资源创建后,将域名nginx.demo.com解析到nginx-ingress所在的边缘节点中的任意一个,当然也可以在本地/etc/hosts中添加对应的隐射也可以,然后就可以通过域名进行访问了

配置支持 Socket.io

重点是使用nginx $http_x_forwarded_for做客户端ip地址一致hash,实现会话保持,curl -I nginx.demo.com查看

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: websocket
  namespace: default
  annotations:
     # 会话保持
    nginx.ingress.kubernetes.io/affinity: "cookie"
     # 代理发送超时
    nginx.ingress.kubernetes.io/proxy-send-timeout: "3600"
    # 代理读取超时
    nginx.ingress.kubernetes.io/proxy-read-timeout: "3600"
    # 代理连接超时
    nginx.ingress.kubernetes.io/proxy-connect-timeout: "3600"
    # 基于客户端出口ip哈希
    nginx.ingress.kubernetes.io/upstream-hash-by: "$http_x_forwarded_for"
spec:
  rules:
  - host: websocket.example.com
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: websocket
            port:
              number: 8080

解决转发 X-Forwarded-Proto 请求头问题

解决方法:在 ingress 配置文件中添加 nginx.org/redirect-to-https: “true”
K8s Nginx Ingress Controller 转发 X-Forwarded-Proto 请求头的问题

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: cnblogs-ingress
  annotations:
    kubernetes.io/ingress.class: nginx
    nginx.org/redirect-to-https: "true"

添加 proxy_set_header 配置

通过 ingress 的 nginx.org/location-snippets 注解添加如下的配置:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: cnblogs-ingress
  annotations:
    nginx.org/location-snippets: |
      proxy_set_header Upgrade $http_upgrade;
      proxy_set_header Connection $connection_upgrade;

七层负载均衡对 nginx-ingress 进行健康检查问题
阿里云负载均衡对 K8s Nginx Ingress 的健康检查问题

基于二级域名自动转发到 service 的实现方法
K8s Ingress 如何自动根据主机名中的二级域名匹配 service

应用获取不到客户端真实 IP 地址的问题
K8s 中 ASP.NET Core 应用获取不到客户端真实 IP 地址

文章作者: 鲜花的主人
版权声明: 本站所有文章除特别声明外,均采用 CC BY-NC-SA 4.0 许可协议。转载请注明来自 爱吃可爱多
Kubernetes Kubernetes
喜欢就支持一下吧
打赏
微信 微信
支付宝 支付宝
